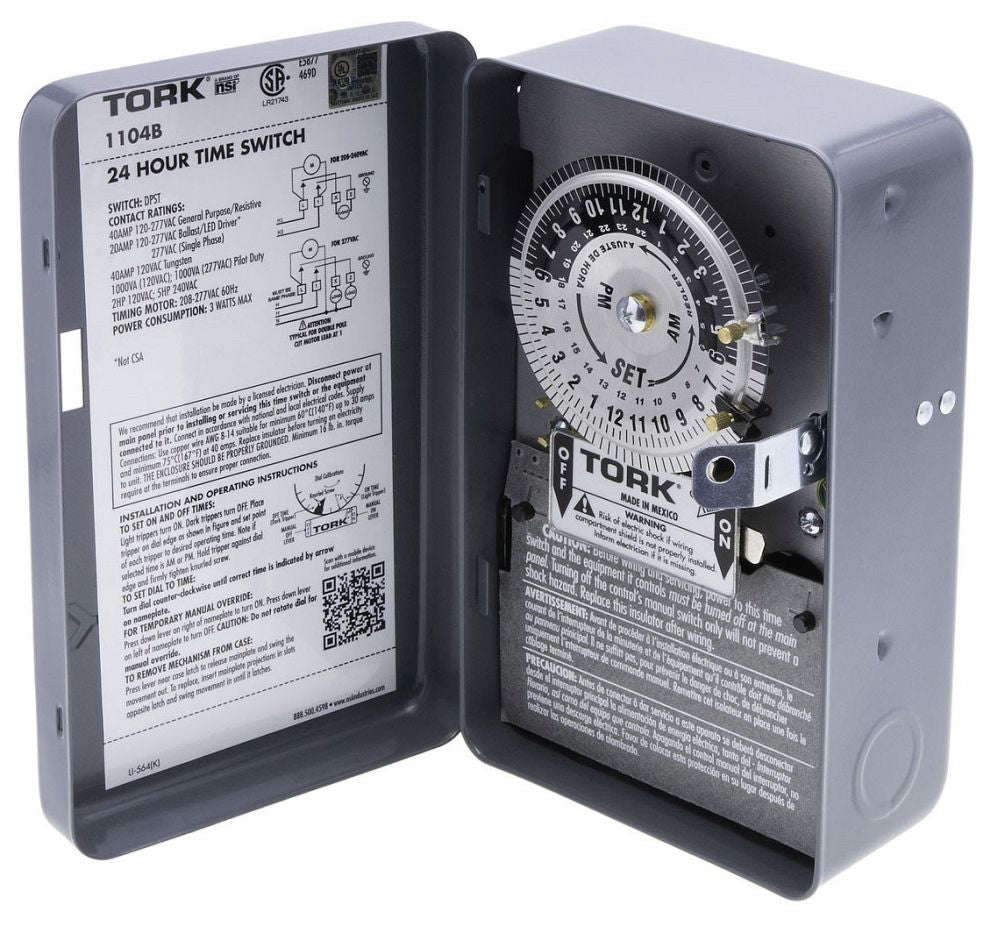

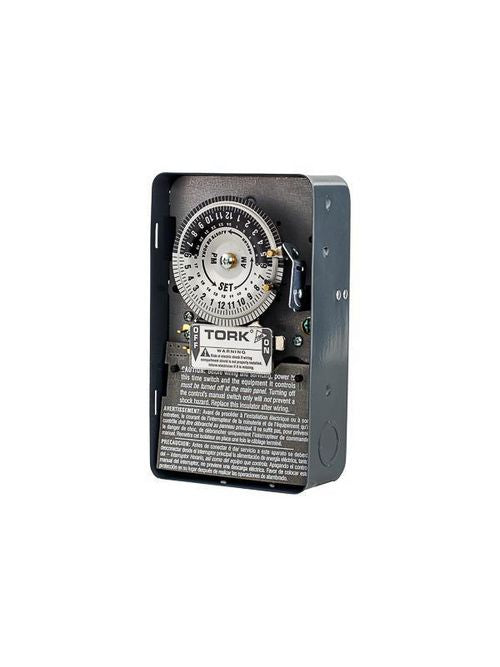

Tork 1104B 208/277 VAC 60 Hz 40 Amp NEMA 1 24 Hour Metal DPST Electromechanical Time Switch

Product Description

The Tork 1104B is a 208/277 VAC 60 Hz electromechanical time switch with a power rating of 40 amp. This time switch is designed for use in various automation control applications.

• Mechanical, 24-hour time switch with a DPST configuration.
• Operating temperature range from negative forty to one hundred sixty-five degrees Fahrenheit.
• NEMA 1 enclosure allows for indoor use and is suitable for various lighting and control applications.

Product Highlights

The Tork 1104B is ideal for controlling lighting, pumps, signs, air conditioning units, water heaters, and fans. It features a durable metal construction and meets UL and CSA approval standards.

Product Information

Standard Information

• Brand: Tork
• MPN: 1104B

Technical Specifications

• Voltage Rating: 208 to 277 Volt AC at 60 Hertz
• Current Rating: 40 Amp
• Power Rating: 3 Watt
• Enclosure: NEMA 1
• Material: Metal
• Size: 4.687 Inch Length x 2.937 Inch Width x 7.937 Inch Height
• Minimum ON Time: 20 Minute
• Minimum OFF Time: 75 Minute
• Application: Lighting, Pump, Sign, Air Conditioning, Water Heater, Fan Control, Indoor
• Approval: UL (Canada and US), CSA
• Additional Information: Number of Dial Trippers 12 Pair; Wire Size 14 to 8 AWG; Includes 1-Pair Dial Tripper
