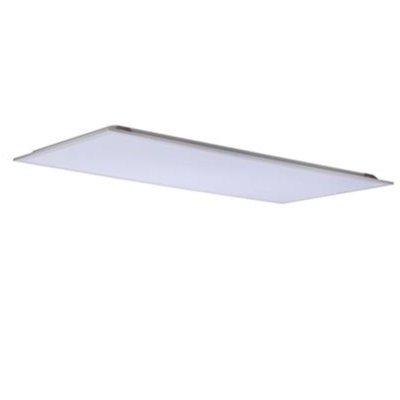

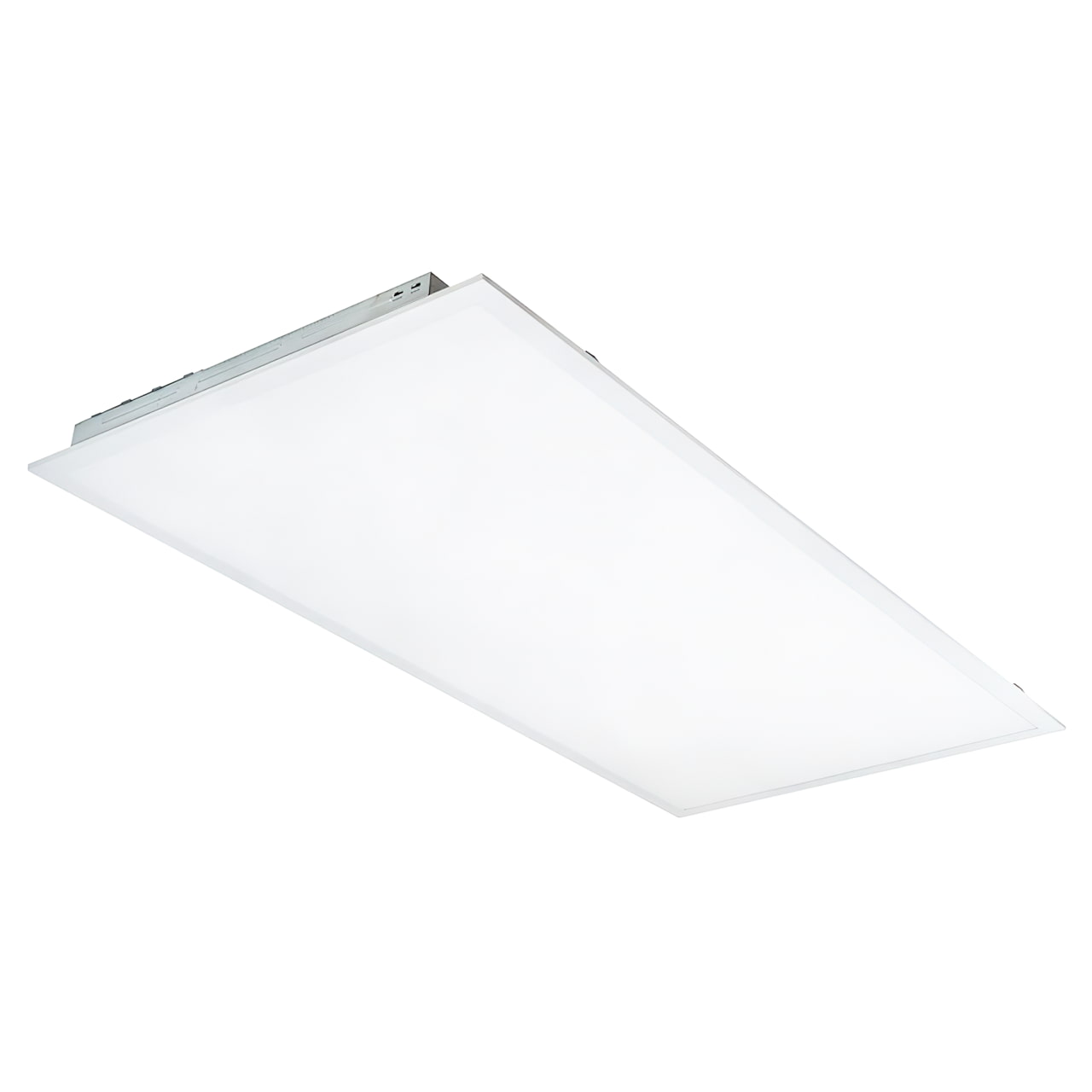

Topaz PL24-50WPCTS-D 2x4 LED Flat Panel 30/40/50W (2x4)

Product Description

Topaz PL24-50WPCTS-D is a 2x4 LED flat panel with selectable wattage and correlated color temperature. The fixture offers three wattage settings (30W, 40W, 50W) and three CCT choices (3500K, 4000K, 5000K), delivering 4,200 to 6,750 lumens at up to 140 lm/W. It operates on 120-277V, is 0-10V dimmable to 1 percent, has a minimum CRI of 80, a 50,000 hour L70 rated life, and is damp location rated for commercial interior applications.

• Selectable wattages: 30W, 40W, 50W and selectable CCTs: 3500K, 4000K, 5000K
• Output 4,200–6,750 lumens; efficacy up to 140 lm/W; minimum CRI 80; 50,000 hour L70
• 120–277V input, 0–10V dimmable to 1 percent, IC rated, damp location rated

Product Highlights

Selectable 30/40/50W and 3500K/4000K/5000K; 4,200–6,750 lumens; 120–277V; 0–10V dimming; 50,000 hour L70

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: PL24-50WPCTS-D

Technical Specifications

• Brand: Topaz
• Manufacturer Part Number: PL24-50WPCTS-D
• Product Name: 2x4 LED Flat Panel
• Form Factor: 2x4
• Input Voltage: 120-277V
• Frequency: 50/60 Hz
• Selectable Wattages: 30W, 40W, 50W
• Selectable CCT: 3500K, 4000K, 5000K
• Lumens: 4,200 - 6,750
• Efficacy: Up to 140 lm/W
• CRI: 80 (minimum)
• Beam Angle: 120 degrees
• Rated Life (L70): 50,000 hours
• Dimmable: 0-10V dimming, down to 1%
• Power Factor: >0.9
• Total Harmonic Distortion: <20%
• Ambient Operating Temperature: -4 F to 113 F
• Location Rating: Damp
• IC Rated: Yes
• Construction: Steel housing with white powder coat finish and polystyrene lens
• Driver: Internal
• Product Dimensions: 47.75 in x 23.74 in x 1.67 in
• Length: 4 ft
• Certifications: UL, DLC Premium, RoHS
• UPC: 751338040304
• GTIN: 00751338040304
