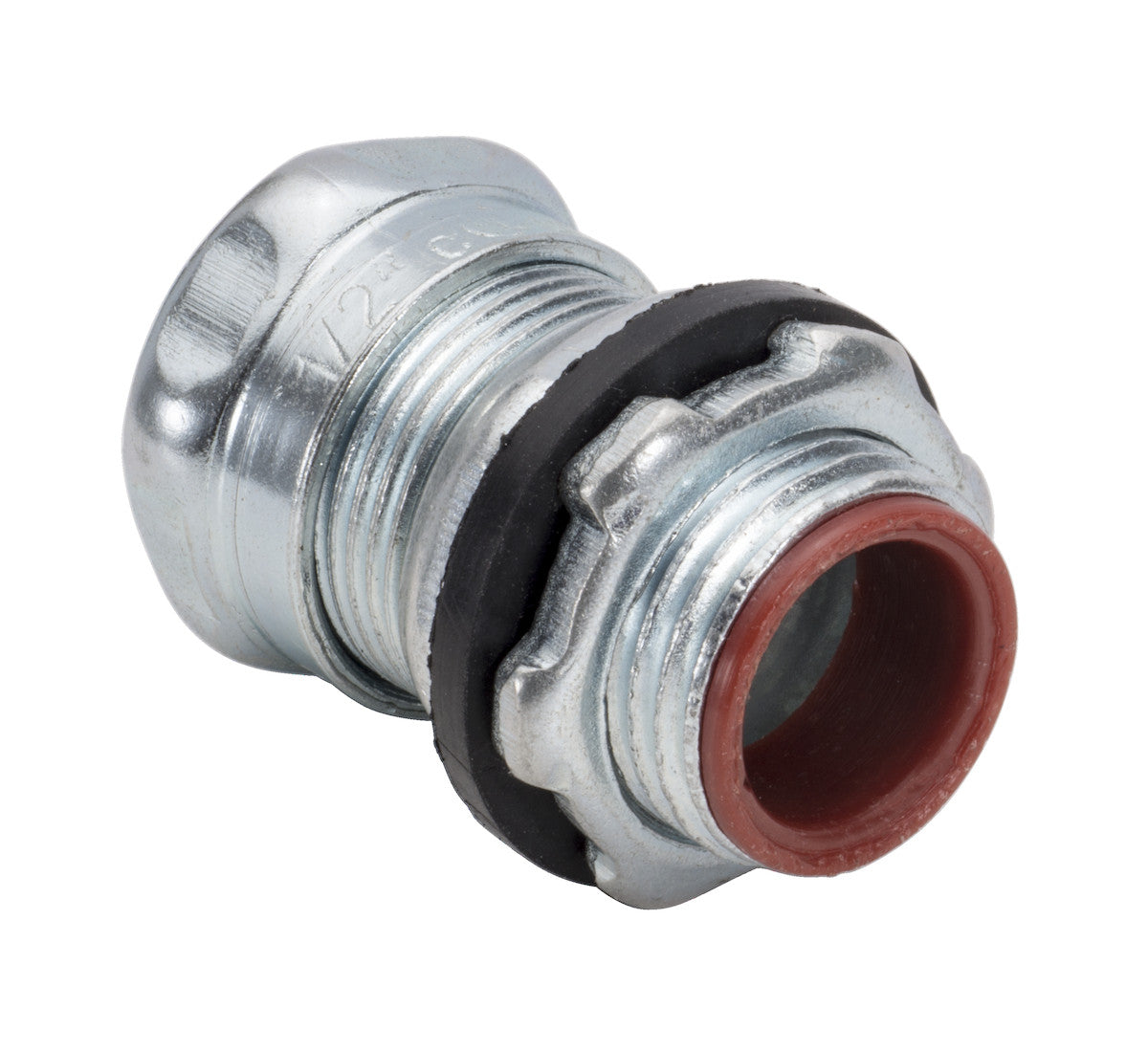

Topaz 652SIRT 3/4 inches Steel Raintight Compression Type Connector with Insulated Throat

Product Description

The Topaz 652SIRT is a 3/4" steel EMT connector with a compression type assembly, providing a raintight and concrete tight connection. It is used to securely bond EMT thin wall conduits to electrical boxes or enclosures. The insulated throat provides additional protection against abrasion and includes a steel locknut and gasket.

• Compression type connectors
• Concrete tight and raintight
• Assembled with a steel locknut & gasket

Product Highlights

This steel EMT connector features a zinc plated finish and an insulated throat for added protection.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 652SIRT
• Country of Origin: CHN

Technical Specifications

• MPN: 652SIRT
• Brand: TOPAZ
• Reference ID: TOPAZ652SIRT
• Trade Size: 3/4 Inch
• Material: Zinc Plated Steel
• Constructional Feature: Rain/Concrete Tight
• Approval: UL E307843/514B
• Used On: EMT Conduit
• Applicable Standard: NEMA/ANSI FB1
• Item UPC: 751338830073
• Manufacturer: Topaz
