Topaz 351ss 1/2 in Rigid and EMT

Product Description

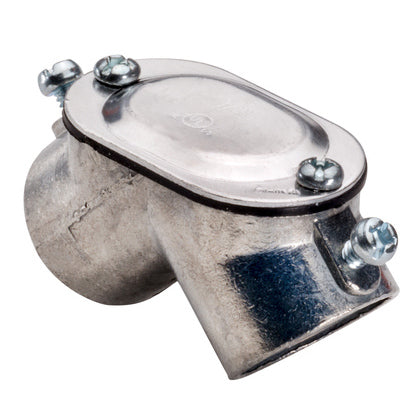

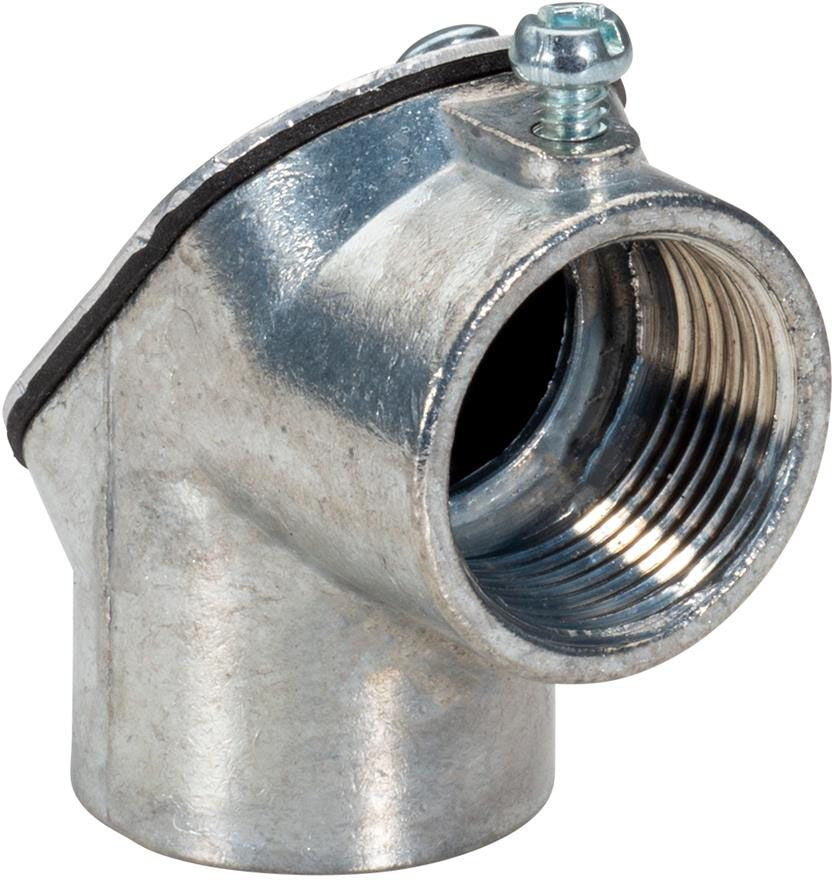

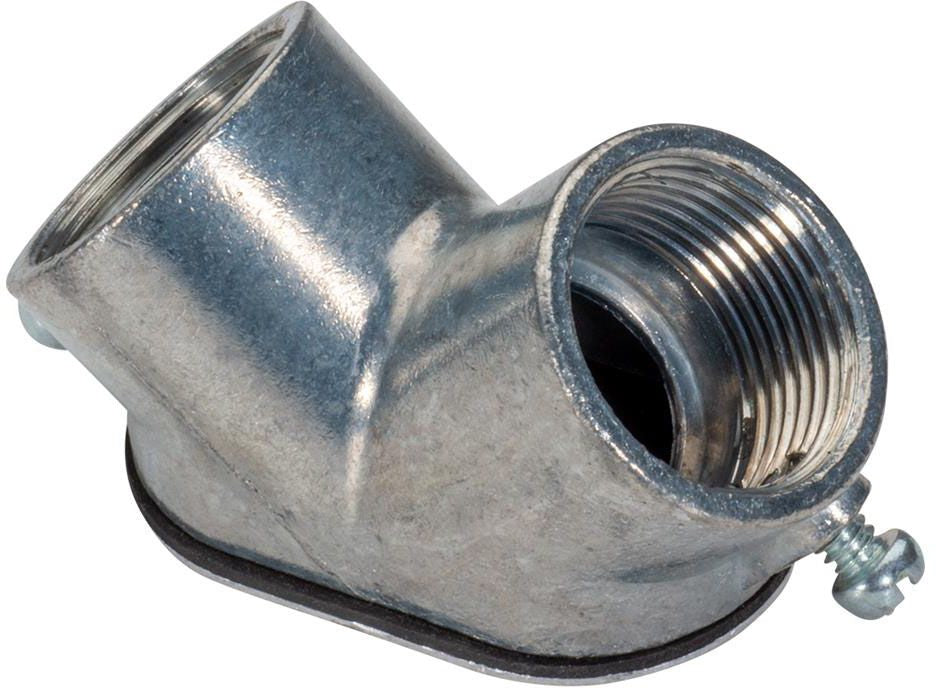

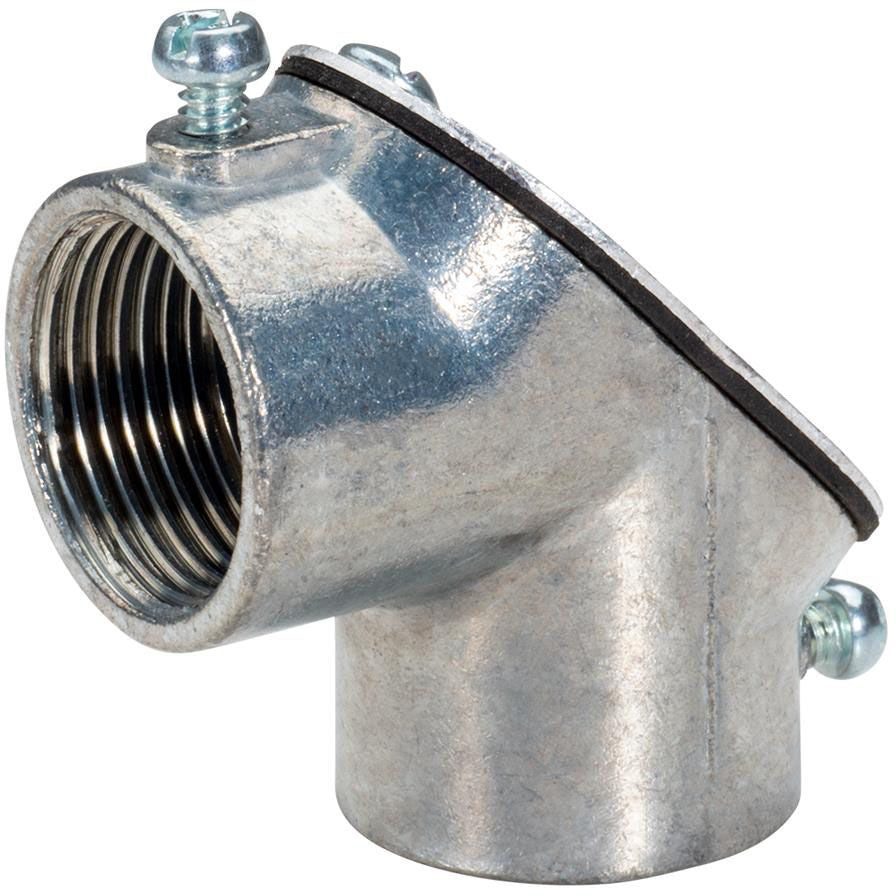

The Topaz 351SS is a 1/2 inch IMC/Rigid/EMT conduit pull elbow designed for use when 90 degree turns are needed in conduits. Features a female threaded installation with a set screw. Constructed from die-cast zinc for corrosion resistance and includes a neoprene gasket for protection against moisture and particles.

• Bend angle of 90 degrees.
• Made from corrosion-resistant die-cast zinc.
• Includes a neoprene gasket for environmental protection.

Product Highlights

This 1/2 inch rigid and EMT combo pull elbow is ideal for facilitating wire pulling through sharp bends in rigid or IMC conduit runs, suitable for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 351SS
• Country of Origin: CHN

Technical Specifications

• Country Of Origin: CHN
• Brand Name: Topaz
• Brand Part Number: 351SS
• Item UPC: 751338850309
• Manufacturer: Topaz
• Manufacturer Part Number: 351SS
• Standards: California Proposition 65
• Insulation: Non-Insulated
• Bend Angle: 90 Degree
• Trade Size: 1/2 Inch
• Constructional Feature: Corrosion Resistant
• Material: Die-Cast Zinc
• Approval: UL (Canada and US)
• Used On: IMC/Rigid/EMT Conduit, Indoor, Outdoor (Rigid)
• Connection Type: EMT to Rigid
• Size: 1.09 Inch Diameter x 2.5 Inch Length
