Topaz 324tz Metallic Grounding Bushing, Die Cast Zinc, 1-1/4 inches, Female Threaded

Product Description

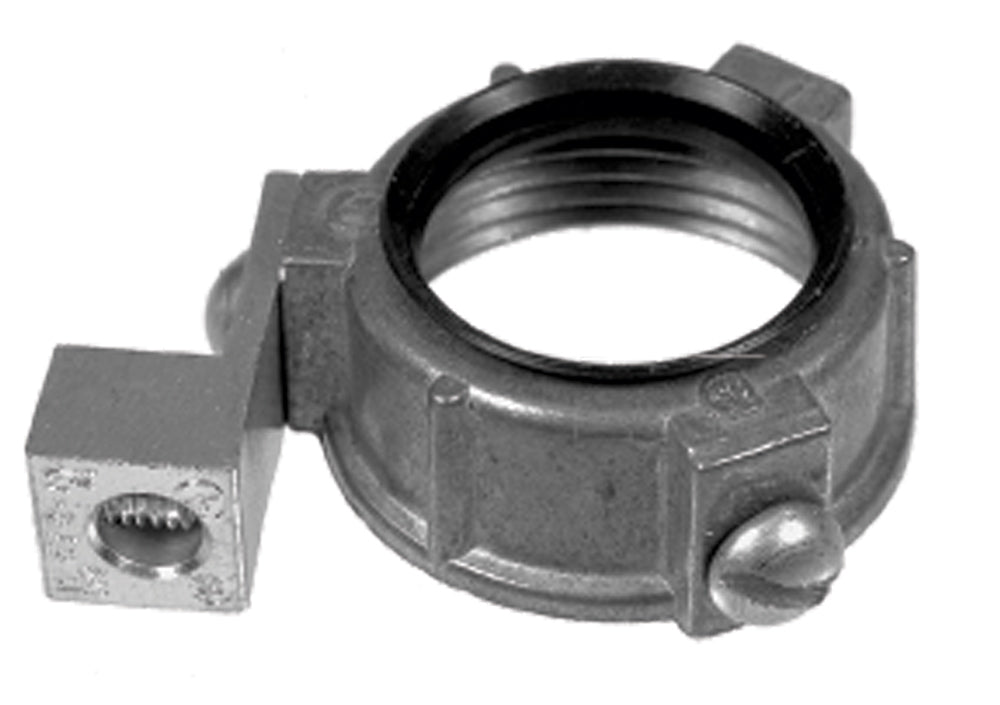

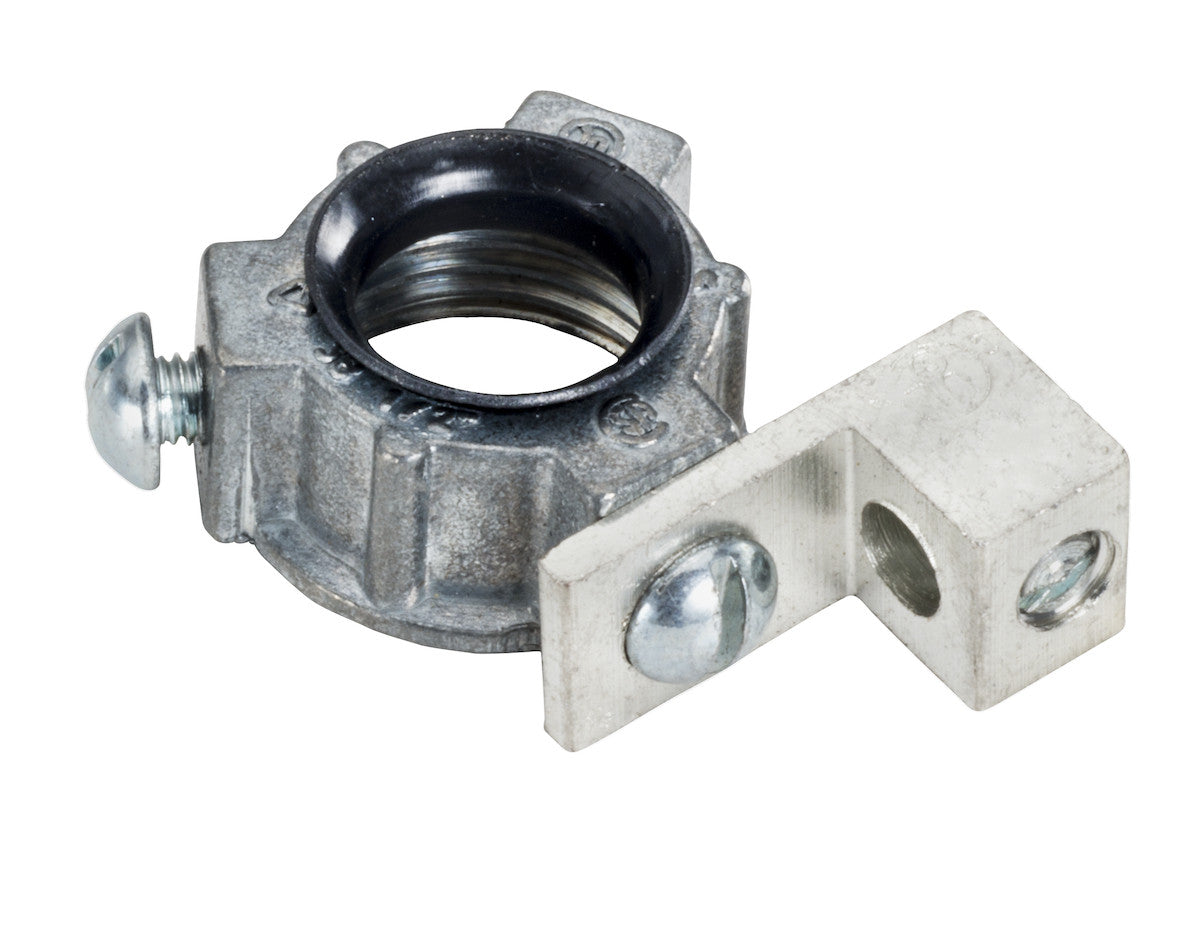

The Topaz 324TZ metallic grounding bushing is constructed from die cast zinc with a 1-1/4" female threaded connection. It is designed for use with an aluminum lug to terminate conduit service and is recommended for applications with copper or aluminum bare ground connectors. Protective thermoplastic throat liners are rated to 105

• Liner is rated flame retardant to 105C
• UL listed for use with copper or aluminum grounding conductor
• Protective thermoplastic throat liners help prevent wire insulation damage

Product Highlights

The Topaz metallic grounding bushing is made from die cast zinc and features a 1-1/4" female threaded connection. It is UL listed and suitable for use with copper or aluminum grounding conductors.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 324TZ
• Country of Origin: MUL

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 324TZ
• Material: Die Cast Zinc
• Size: 1-1/4 IN
• Type: Metallic Grounding Bushing
• Connection: Female Threaded
• For Use With: Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
• ISTMT (testing temp) (DEG C): +105 DEG C
• Label Description: INSULATED METALLIC GROUNDING BUSHINGS
• Size (IN): 1-1/4" IN
• Standard: UL E148716, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Temperature Rating: +105 DEG C
• Wire Size: 14 to 4 AWG
