Topaz 303CB 1in Metal Capped Bushing

Product Description

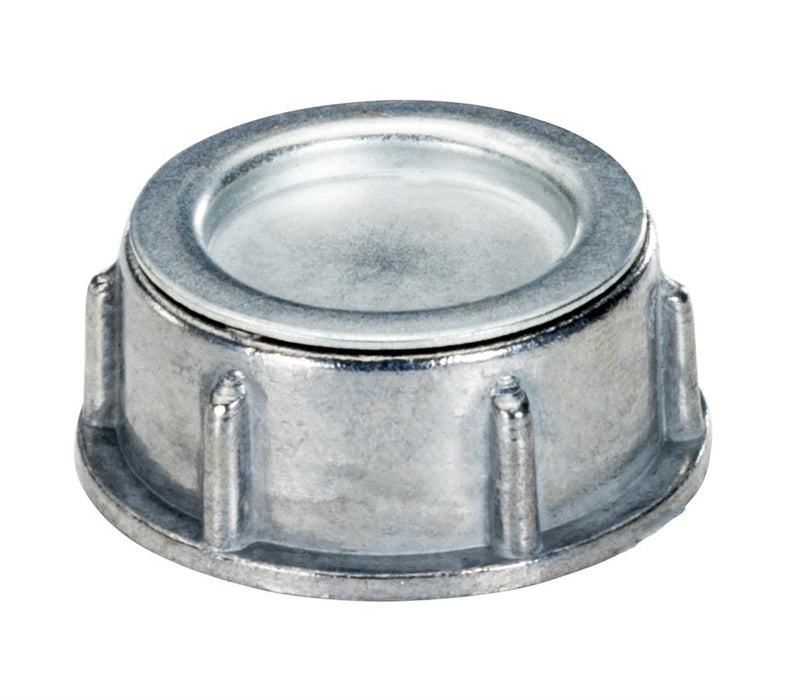

The TOPAZ 303CB 1in Metal Capped Bushing is a female threaded, capped bushing designed for IMC/Rigid conduit. Constructed of die-cast zinc with a steel cap, it prevents debris from entering unused conduit. It is suitable for indoor and outdoor applications. The bushing easily affixes to conduit for use in communications, television, and security system installations.

• Steel cap prevents debris from entering conduit
• Constructed of naturally corrosion resistant zinc die cast with strong steel cap
• Female Threaded

Product Highlights

Ideal for capping off unused conduits, the Topaz rigid conduit bushings are corrosion resistant and suitable for indoor/outdoor use.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 303CB
• Country of Origin: CHN

Technical Specifications

• Type: Female Threaded
• Trade Size: 1 in
• Material: Die Cast Zinc
• Application: For use with locknut to terminate threaded rigid or IMC conduit to an outlet box and indoor/outdoor applications
• Standard & Approvals: UL 514B, UL E148716 Listed, US Federal Specification Number A-A-50553, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Throat Type: Non-Insulated
• Used On: IMC/Rigid Conduit
• Manufacturer: Topaz
• Manufacturer Part Number: 303CB
