Product Description

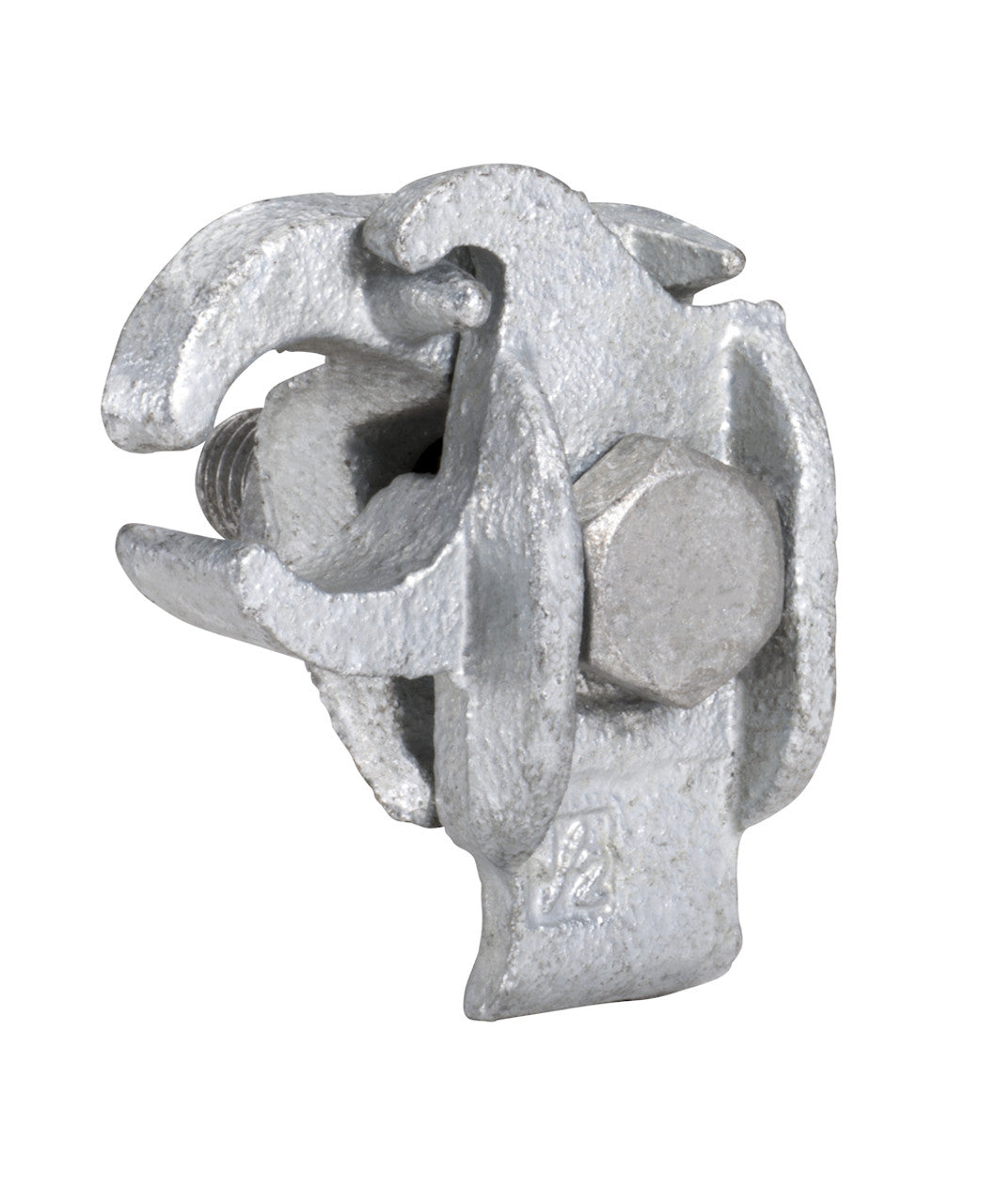

The Topaz 1572HDG is a 3/4 inch edge type conduit support designed for mounting EMT or rigid conduits parallel to a beam. This product is made from galvanized steel, offering durability and resistance to corrosion. Easy installation is ensured with a single bolt for mounting. Designed primarily for conduit systems in commercial and industrial applications, it is ideal for situations where support and alignment are crucial. The edge type design allows for secure fastening to beams while maintaining the integrity of the conduit.
- Material: Galvanized Steel/Iron
- Finish: Hot-Dip Galvanized
- Application: For use in mounting conduits parallel to a beam
Product Highlights
This conduit support is UL listed and complies with ASTM A123/123M standards. It features hot-dip galvanization, providing long-lasting protection against rust and environmental factors.
Product Information
Standard Information
-
Brand: Topaz
-
Manufacturer: Topaz
-
Vendor: 590106
-
UNSPSC: 39121701
Technical Specifications
-
Weight: 0.71 lbs
-
Size: 3/4 inch
-
Type: Edge Type Conduit Support
-
Number Of Holes: 1
-
Mounting: Bolt
-
Finish: Hot-Dip Galvanized
-
Application: Mount EMT or Rigid Conduits Parallel to a Beam
-
Standard: UL File Number E174011; ASTM A123/123M; RoHS Compliant; NEMA FB1; Federal Spec A
