Tool-flo C4112500N4C Grooving Insert TNMC43 GP50 Tin

Product Description

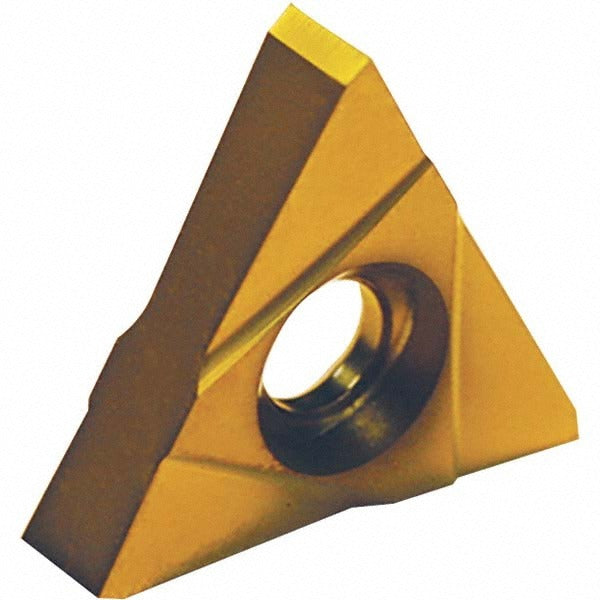

The TOOL-FLO C4112500N4C is a solid carbide grooving insert designed for on-edge style tooling systems. It carries the TNMC43 insert style designation and is manufactured to the GP50 grade. The insert features a PVD-applied titanium nitride (TiN) coating for improved surface hardness and wear resistance. With a cutting width of 0.125 inches and a maximum depth of cut of 0.215 inches, it is suited for precision grooving operations on steel workpieces. Holding is accomplished via screw clamp. This insert is typically installed by machinists and CNC tool setup technicians working with compatible on-edge grooving toolholders.

This insert is intended for grooving applications on steel in both conventional and CNC turning environments. The neutral hand orientation makes it adaptable to a range of grooving setups without requiring a handed toolholder. The GP50 grade and TiN coating are matched to general-purpose steel cutting, including finishing and light roughing grooving passes. It is a single-use, non-multi-use insert replaced at end of tool life.

Key Features

• Solid carbide substrate with PVD TiN coating for enhanced wear resistance on steel
• 0.125 inch cutting width for precise groove dimensioning
• Maximum depth of cut 0.215 inches within a 0.200 to 0.300 inch depth of cut range
• Neutral hand orientation for flexible toolholder compatibility
• Screw holding method for secure, repeatable insert clamping
• Full radius: No - flat-bottom groove geometry

Compatibility

Designed as an OEM-style replacement grooving insert for on-edge series grooving toolholders accepting TNMC43 style inserts with screw clamping. ISO code TNMC43NGC W.125 and manufacturers catalog number TNMC 43 NGC W.125 may be used to cross-reference compatible toolholder systems.

Installation Notes

Installation is performed by machinists or CNC tool setup technicians. Always power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key to loosen the clamp screw, seat the insert fully against the pocket seating surfaces, and torque the screw per the toolholder manufacturer specification. Inspect the insert pocket for chips or wear before seating a new insert.
