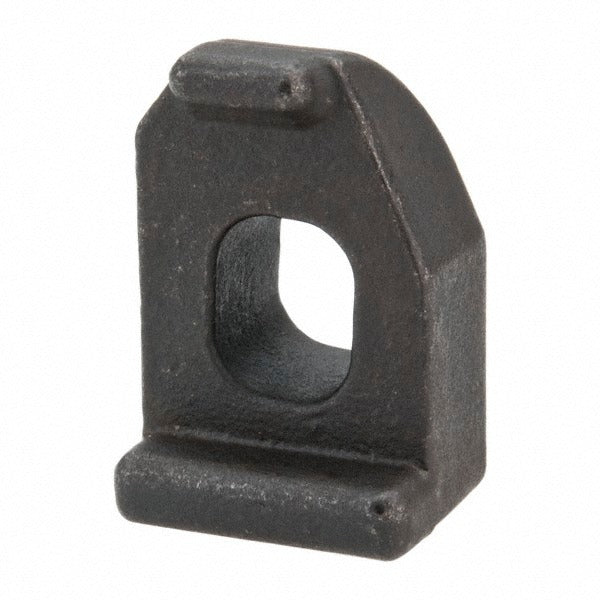

Tool-flo 9HTF75 Flo-lock Tf Clamp Indexable Toolholders

Product Description

The TOOL-FLO 9HTF75 is a TF-style Flo-Lock clamp designed to secure indexable inserts in compatible turning toolholders. Part of TOOL-FLO's Flo-Lock series, this clamp provides consistent clamping force to hold indexable cutting inserts firmly in place during turning operations. It supports both left-hand and right-hand cutting directions, making it suitable for a range of turning setups. At 0.01 pounds, the clamp is a small but critical component in maintaining insert positioning and repeatability at the toolholder. Machinists and toolroom technicians are the primary installers of this hardware.

The 9HTF75 is used in CNC and manual turning applications where Flo-Lock-style toolholders are specified. It is compatible with toolholder styles including A_-FLEL, A_M-FLER, FLER, FLRR, and FLSL series holders. Specific complete toolholder compatibility includes A08-FLER/L, A10-FLER/L, A12-FLER/L, FL.R/L 122B, and FL.R/L 162C. This clamp is intended for production turning environments where indexed insert changes must be fast, secure, and repeatable.

Key Features

• TF clamp style within the Flo-Lock series for positive insert retention
• Supports both left-hand and right-hand cutting directions
• Compatible with FLEL, FLER, FLRR, and FLSL toolholder style families
• Lightweight at 0.01 pounds - minimal impact on toolholder assembly weight
• Industry standard number TF-75 for cross-reference sourcing
• Sold individually (package quantity of 1)

Compatibility

Compatible with toolholder styles A_-FLEL, A_M-FLER, FLER, FLRR, and FLSL. Verified complete toolholder fits include A08-FLER/L, A10-FLER/L, A12-FLER/L, FL.R/L 122B, and FL.R/L 162C. Industry standard cross-reference number is TF-75.

Installation Notes

Installation is performed by machinists or toolroom technicians. Before replacing or seating the clamp, ensure the machine spindle is fully stopped and the toolholder is secured in a vise or fixture. Use the manufacturer-specified clamp screw and torque driver appropriate for the toolholder series. Inspect the clamp seating surface and insert pocket for chips or debris before reinstalling the insert.
