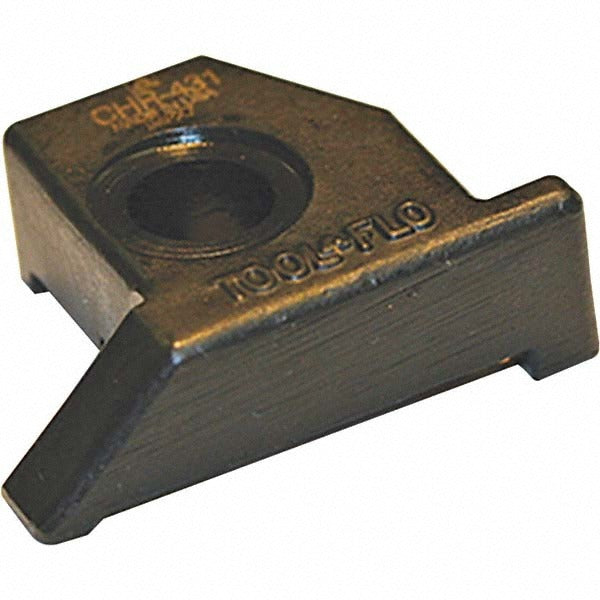

Tool-flo 9H1FCR094 Ch Clamp Indexable Series Fc Right Hand

Product Description

The TOOL-FLO 9H1FCR094 is a CH-style clamp designed for use with indexable insert tooling in the Series FC system. This right-hand-cut clamp secures indexable inserts firmly in the toolholder pocket, maintaining precise insert positioning during turning, boring, or facing operations. It is a direct replacement or spare component for Series FC toolholders requiring a CH-style clamping mechanism. Machinists and toolroom technicians working with indexable insert systems rely on this type of clamp to maintain consistent cutting geometry and reduce insert movement under load.

This clamp is intended for use in production machining environments where Series FC indexable toolholders are already in service. The right-hand cutting direction designation means it is matched to right-hand toolholder configurations. It is suited for CNC turning centers, lathes, and manual turning applications using compatible Series FC toolholder bodies. The catalog reference for this part is CHR-FCS094, which also serves as the industry standard number for cross-referencing with equivalent components.

Key Features

• CH clamp style for Series FC indexable toolholder system
• Right-hand cut orientation for correct insert seating and clamping load direction
• Direct replacement clamp referenced under catalog number CHR-FCS094
• Designed to maintain repeatable insert positioning during machining operations
• UNSPSC Code 23242100 for standardized procurement classification

Compatibility

Compatible with Series FC indexable toolholders requiring a CH-style clamp in a right-hand cut configuration. Cross-reference catalog number CHR-FCS094 when sourcing replacements for existing Series FC toolholder bodies.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine fully powered down and the spindle locked before any toolholder service. Verify that the clamp style and cutting direction match the toolholder body before installing. Do not substitute left-hand clamps in right-hand toolholder pockets, as improper seating can cause insert movement or failure during cutting. Inspect the clamp seat and insert pocket for wear or debris before assembly.
