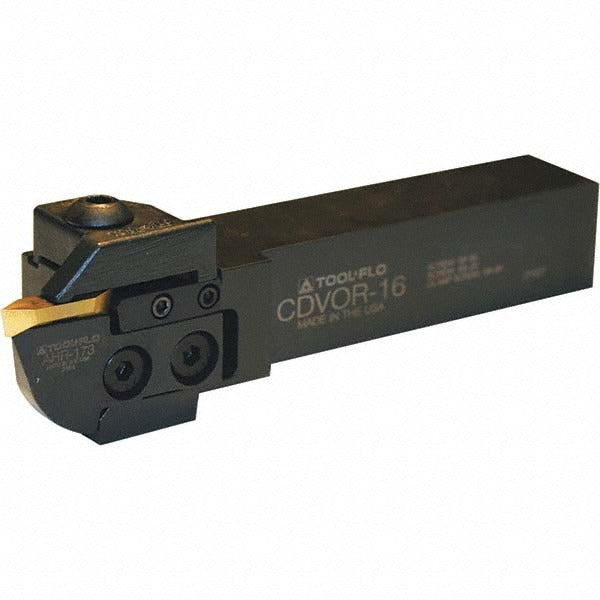

Tool-flo 92401600 Grooving Cutoff Toolholder CDVOR-16

Product Description

The TOOL-FLO 92401600 is an indexable grooving and cutoff toolholder designed for external turning operations on metal lathes and CNC turning centers. Built to the CDVOR-16 style in the Vee Bottom series, it accepts CDVO-style inserts secured by a clamp-style insert holding method. The toolholder features a 1 inch by 1 inch square shank and an overall length of 6 inches, with a maximum groove width of 1.063 inches and a maximum depth of cut of 0.812 inches. It is a right-hand configuration suited to standard front-tool-post or gang-tool setups. Machinists and CNC operators install this holder for repeatable, rigid grooving and part cutoff on production and job-shop turning equipment.

This toolholder is intended for external grooving and cutoff applications in both production and job-shop environments. The 1 inch square shank fits a wide range of lathe tool posts and turrets designed for that shank size. With a back-of-bar to cutting edge distance of 1.15 inches and no coolant-through provision, it is best suited to flood-coolant or air-blast setups. Typical applications include groove turning, O-ring groove cutting, and cutoff work on ferrous and non-ferrous workpieces.

Key Features

• CDVOR-16 style in the Vee Bottom series for secure insert seating and rigidity
• Clamp-style insert retention for reliable, repeatable insert indexing
• Right-hand cutting configuration for standard lathe orientations
• Maximum groove width of 1.063 inches supports a broad range of grooving operations
• Maximum depth of cut of 0.812 inches accommodates deep groove and cutoff work
• 1 inch by 1 inch square shank fits common lathe tool posts and CNC turrets

Compatibility

Accepts CDVO-style indexable inserts. Designed as a direct-fit grooving and cutoff toolholder for lathes and CNC turning centers with a 1 inch square shank tool station.

Installation Notes

Installation is typically performed by a machinist or CNC setup technician. Power down and lock out the machine spindle before mounting or removing the toolholder from the turret or tool post. Ensure the shank seating surfaces are clean and free of chips before tightening. Follow the machine tool manufacturer's torque and clamping specifications for the tool post or turret station.
