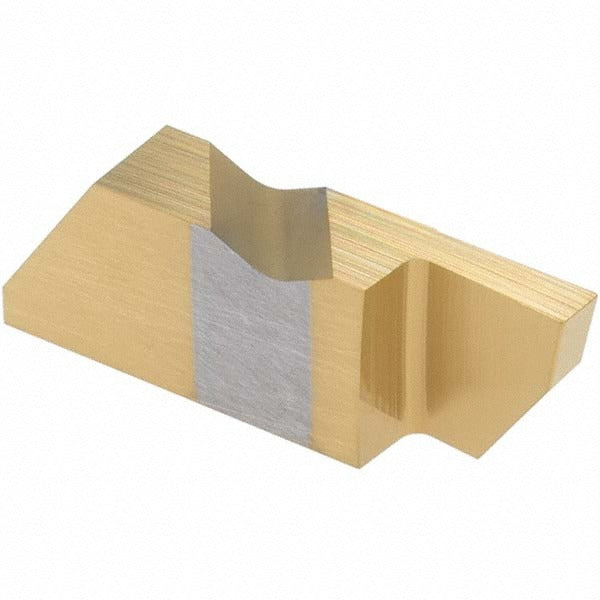

Tool-flo 6334094RJ5R Grooving Insert Flgd 3094 GP3R

Product Description

The TOOL-FLO 6334094RJ5R is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. This right-hand insert carries a Titanium Nitride (TiN) coating applied via PVD process, which improves surface hardness and wear resistance without altering edge geometry. The cutting width measures 0.094 inches (2.39 mm), with a maximum depth of cut of 0.250 inches. Built to the FLGD 3094 insert style standard, it uses a clamp-style holding method and is manufactured from micrograin solid carbide for consistent edge integrity across production runs. Licensed machinists and CNC operators install this insert as part of the Flo-Lock tooling system.

This insert is suited for grooving applications in both light and medium-duty turning operations. The GP3R grade with TiN PVD coating is particularly well-matched for secondary workpiece materials including stainless steel. Single-end design means the insert is indexed or replaced when the cutting edge is worn. Typical applications include external grooving, undercut work, and controlled-depth parting on bar stock or chucked workpieces in production machining environments. The 0.375-inch gage diameter and 0.344-inch cutting height support use in standard Flo-Lock clamp-style toolholders configured for the 3094 insert size.

Key Features

• Solid micrograin carbide construction for consistent edge sharpness and wear resistance
• Titanium Nitride (TiN) coating via PVD process for improved surface hardness
• 0.094-inch (2.39 mm) cutting width with 0.250-inch maximum depth of cut
• Right-hand orientation, single-end, clamp-style holding method
• Corner radius range of 0.005 to 0.010 inches for controlled edge geometry
• Flo-Lock series, ISO code FLGD3094R, compatible with standard FLGD-style toolholders

Compatibility

Designed for use with Flo-Lock clamp-style toolholders configured for the FLGD 3094 insert size. ISO code FLGD3094R. Suitable for grooving stainless steel and comparable workpiece materials.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Power down and lock out the machine spindle before changing inserts. Seat the insert fully in the clamp pocket and verify clamp torque per the toolholder manufacturer specifications before resuming cuts. Inspect the clamp and pocket for chips or debris that could affect seating and edge repeatability.
