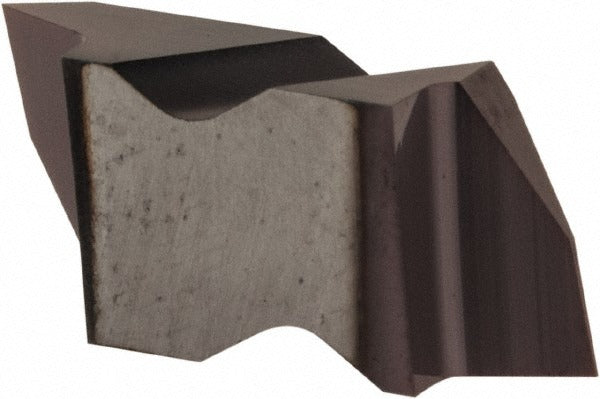

Tool-flo 612400RAC3R Carbide Threading Insert Flo-lock

Product Description

The TOOL-FLO 612400RAC3R is a carbide threading insert designed for both internal and external thread cutting operations. Built to the FLTF-2R style in the Flo-Lock series, it cuts 60-degree V-form threads and handles a pitch range of 12-24 TPI internally and 14-44 TPI externally. The insert is manufactured from carbide at material grades C2 and C3, finished with a PVD coating process rated to the AC50 manufacturer grade. At 0.110 inches tip-to-top and 0.150 inches thick, it is a compact, purpose-built insert for threading on lathes and CNC turning centers. Right-hand cutting orientation is standard. Licensed machinists and CNC operators are the primary users of this component.

This insert is suited for threading applications across a wide pitch range in both internal bores and external diameters. The Flo-Lock series is intended for use in compatible Flo-Lock style toolholders. The 60-degree included angle makes it appropriate for unified and metric V-thread profiles commonly encountered in general machining, repair work, and production threading. It is applicable in both light and moderate-duty turning setups where consistent thread form accuracy is required.

Key Features

• Carbide construction at material grades C2 and C3 for wear resistance in threading operations
• PVD coating process with AC50 manufacturer grade for extended tool life
• Covers internal pitch range of 12-24 TPI and external pitch range of 14-44 TPI
• 60-degree included angle for standard V-thread cutting on internal and external profiles
• Right-hand cutting orientation in FLTF-2R insert style
• Compact geometry: 0.110 inches tip-to-top, 0.150 inches thickness, corner radius 0.002-0.004 inches

Compatibility

Designed for use with Flo-Lock series toolholders that accept the FLTF-2R insert style. Consult your toolholder documentation to confirm insert seat and clamping compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Power down and lock out the machine before seating or replacing any threading insert. Ensure the insert pocket is clean and free of debris before installation to maintain proper seating and thread form accuracy. Do not exceed the toolholder manufacturer's recommended clamping torque for insert size 2 Flo-Lock style inserts.
