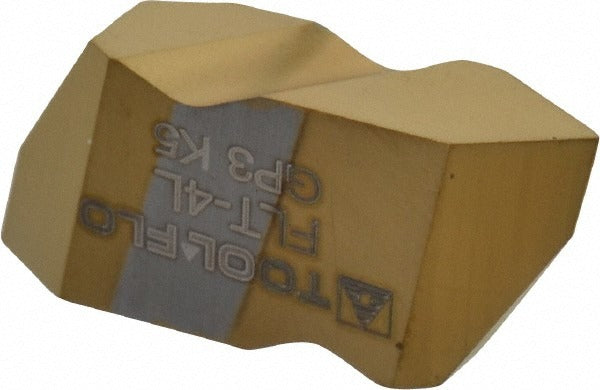

Tool-flo 604600LJ5A Threading Insert GP3 Carbide 4-20 Tpi

Product Description

The TOOL-FLO 604600LJ5A is a left-hand carbide threading insert designed for both internal and external thread cutting operations. It belongs to the Flo-Lock series and carries a GP3 manufacturer grade using a micrograin carbide substrate. A titanium nitride finish is applied via PVD coating, improving surface hardness and wear resistance. The insert follows a 60-degree V thread standard with a chipbreaker (CB) geometry, making it suitable for a wide range of thread pitches from 4 to 20 TPI on external profiles and 4 to 12 TPI on internal profiles. Machinists and toolroom technicians use this insert on CNC lathes and manual turning centers for precision thread-forming work.

This insert is intended for shops performing high-volume or precision threading where consistent thread geometry and tool life are priorities. The FLT-style insert seats into compatible Flo-Lock toolholders. Left-hand orientation makes it the correct choice for left-hand thread applications or specific machine spindle configurations that require it. It is suited to both production environments and job-shop threading operations across a range of ferrous and non-ferrous materials.

Key Features

• GP3 grade micrograin carbide substrate for improved edge strength and wear resistance
• PVD-applied titanium nitride coating for extended tool life
• Cuts both internal (4-12 TPI) and external (4-20 TPI) threads
• 60-degree V thread form compatible with unified and similar thread standards
• Left-hand insert orientation for appropriate application fitment
• Chipbreaker (CB) geometry to aid chip control during threading cuts

Compatibility

Designed for use in TOOL-FLO Flo-Lock series toolholders accepting FLT-style inserts. Verify toolholder and insert size compatibility before installation.

Installation Notes

Threading inserts should be installed by a qualified machinist or toolroom technician. Power down and lock out the machine before seating or removing inserts. Use the appropriate torque wrench and insert screw to secure the insert per the toolholder manufacturer's specifications - do not overtighten by hand. Inspect the insert seat for chips or debris before each installation to ensure proper seating and thread accuracy.
