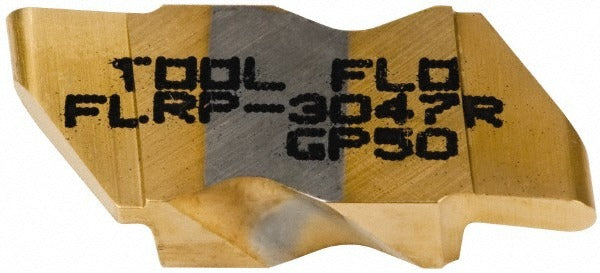

Tool-flo 593847RN4C Grooving Insert GP50 Solid Carbide

Product Description

The TOOL-FLO 593847RN4C is a solid carbide grooving insert in the Flo-Lock series, designed for precision grooving and parting operations on CNC lathes and turning centers. Manufactured to the FLRP-3047R ISO code, this right-hand insert carries a GP50 manufacturer grade and a PVD-applied TiN coating for wear resistance and extended tool life. It delivers a cutting width of 2.39 mm (0.0941 inches) and a maximum depth of cut of 4.57 mm (0.1799 inches), making it suited for moderate-depth grooving work in steel and secondary workpiece materials. Machinists and toolroom professionals install this insert into compatible Flo-Lock toolholders as a direct drop-in cutting edge.

This insert is intended for turning and grooving applications in production and job-shop environments, primarily on steel workpieces. The FLRP style with a positive rake angle of 55 degrees and a 3-degree lead angle supports clean chip formation and reduced cutting forces. The full-radius geometry at 0.0470 inches corner radius suits groove profiling and finish turning operations. It fits Flo-Lock system toolholders sized for the 3047 insert with a 3/8-inch gage diameter, and is applicable where the maximum depth of cut falls in the 4.00 mm to 5.00 mm range.

Key Features

• Solid carbide construction with PVD TiN coating for wear resistance in steel cutting
• 2.39 mm cutting width (0.0941 inches) for precise groove dimensioning
• Maximum depth of cut of 4.57 mm (0.1799 inches); operating range 4.00 mm to 5.00 mm
• Full-radius insert geometry with 0.0470-inch corner radius for smooth groove profiles
• Positive rake angle (55 degrees) reduces cutting forces and supports chip control
• Right-hand orientation for standard turning center setups

Compatibility

Designed for use with Flo-Lock series toolholders accepting the FLRP-3047R insert style with a 3/8-inch gage diameter. Compatible with setups targeting steel and secondary workpiece materials at a maximum depth of cut in the 4.00 mm to 5.00 mm range. Confirm holder and insert style match before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer torque and clamping procedures. Power down and lock out the machine spindle before changing inserts. Inspect the insert pocket for damage, chips, or debris before seating the new insert. Follow applicable shop safety standards and manufacturer guidelines for insert handling and disposal.
