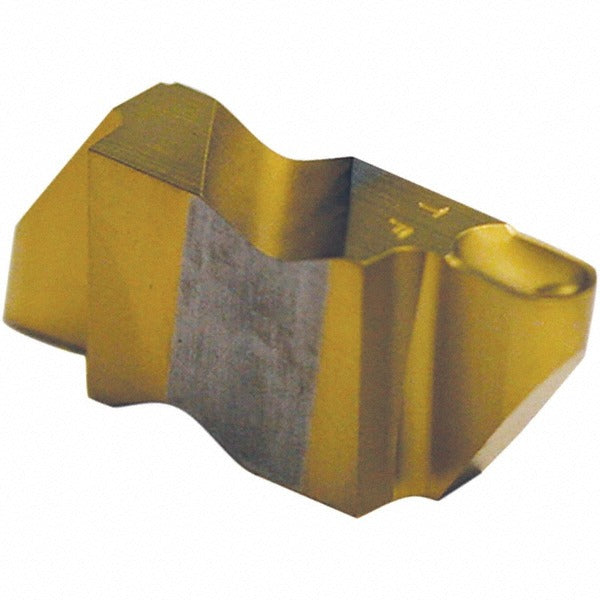

Tool-flo 593031PLAC50C Grooving Insert Solid Carbide Altin

Product Description

The TOOL-FLO 593031PLAC50C is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Built to FLR insert style geometry in left-hand orientation, this insert carries a 1.57 mm cutting width and a maximum depth of cut of 3.18 mm. The AC50C grade substrate is finished with an AlTiN PVD coating, providing heat and wear resistance well-suited for steel workpieces. It seats in Flo-Lock series toolholders using a clamp holding method. Machinists and toolroom professionals working with steel components will find this insert appropriate for both production and job-shop turning applications.

This insert is intended for use in steel turning applications where consistent groove width and controlled chip breaking are required. The Flo-Lock series toolholder system accepts this FLR3031 size insert in left-hand orientation. The double-ended design maximizes usable insert life per unit. The P-style chip breaker geometry is suited to finishing and semi-finishing passes on steel. Typical applications include external grooving, recessing, and parting on CNC lathes in both production-volume and precision job-shop environments.

Key Features

• Solid carbide substrate with AC50C grade for wear resistance in steel cutting
• AlTiN PVD coating for elevated heat resistance and extended tool life
• 1.57 mm cutting width with a full radius corner of 0.79 mm
• Maximum depth of cut 3.18 mm, within range of 3.00 to 4.00 mm
• Left-hand, double-ended insert for dual usable cutting edges
• P-style chip breaker geometry optimized for steel workpieces
• Clamp-style holding method for secure seating in Flo-Lock toolholders

Compatibility

Designed for use with Flo-Lock series toolholders accepting FLR3031 size inserts in left-hand configuration. ISO code reference: FLR3031LCB. Manufacturer catalog reference: FLR-3031L-CB.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or removing the insert. Use the appropriate clamp screw torque specified by the toolholder manufacturer - do not overtighten. Inspect the insert seat and clamp for debris or damage before each insert change to maintain accurate positioning and surface finish.
