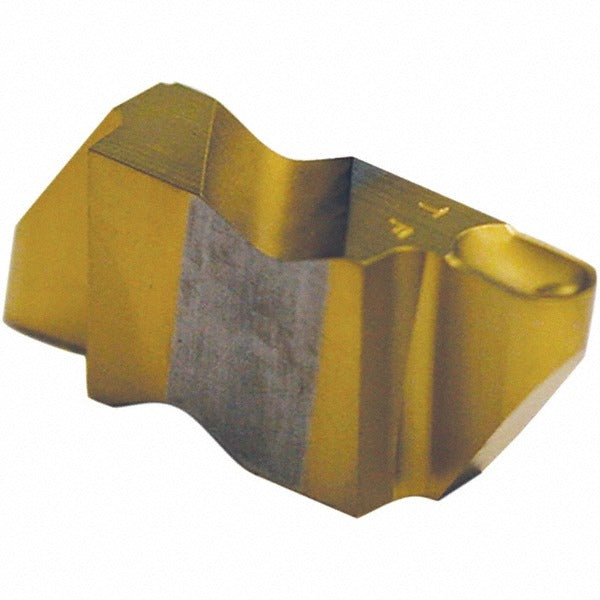

Tool-flo 593031PLAC3R Grooving Insert Left Hand Flo-lock

Product Description

The TOOL-FLO 593031PLAC3R is a solid carbide grooving insert engineered for precision external grooving and turning operations on CNC lathes and turning centers. It features an AlTiN (aluminum titanium nitride) coating applied via PVD process, delivering excellent heat resistance and extended tool life at elevated cutting speeds. The insert carries a 1.57 mm cutting width, a maximum depth of cut of 3.18 mm, and a full corner radius of 0.79 mm. The AC3R manufacturer grade, P-style chip breaker, and left-hand orientation make this insert well suited for demanding material removal in tight clearance applications. It is clamped into compatible Flo-Lock toolholders and is not a multi-use or indexable insert.

This insert is designed for use in turning and grooving operations on difficult-to-machine workpiece materials including cast iron, non-ferrous metals, and stainless steel. It is used in applications requiring consistent chip control and a defined groove width with a full radius profile. The Flo-Lock series designation indicates compatibility with TOOL-FLO Flo-Lock clamp-style toolholders. Typical applications include groove-turning on CNC lathes in production machining environments, job shops, and precision component manufacturing.

Key Features

• Solid carbide construction with PVD-applied AlTiN coating for heat and wear resistance
• 1.57 mm cutting width with full corner radius of 0.79 mm for consistent groove geometry
• Maximum depth of cut of 3.18 mm, within a range of 3.00 to 4.00 mm
• Left-hand insert orientation for specific toolholder and approach configurations
• P-style chip breaker optimized for chip control in grooving operations
• Clamp-style holding method compatible with Flo-Lock series toolholders

Compatibility

Designed for use with TOOL-FLO Flo-Lock series clamp-style grooving toolholders. ISO code FLR3031LCB. Compatible with toolholders designed for the FLR insert style, size code 3031CB. Refer to TOOL-FLO catalog number FLR-3031L-CB for corresponding toolholder and system references.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before inserting or removing cutting inserts. Seat the insert fully in the pocket and verify clamp engagement before resuming cutting operations. Follow the toolholder manufacturer torque and clamping procedures as specified in the Flo-Lock toolholder documentation.
