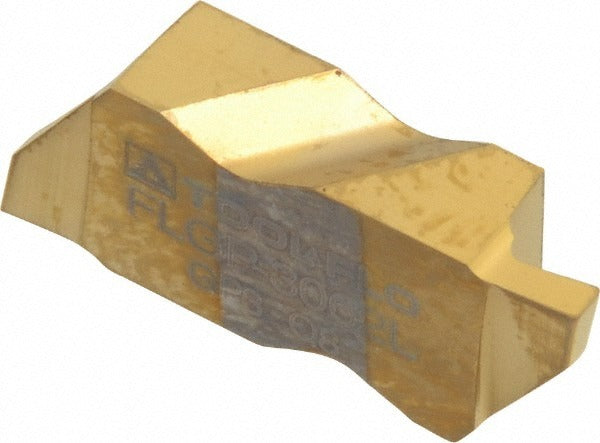

Tool-flo 573462LJ5R Grooving Insert GP3 Solid Carbide Tin

Product Description

The TOOL-FLO 573462LJ5R is a left-hand grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Built from micrograin solid carbide and finished with a PVD-applied TiN coating, this insert delivers consistent cutting performance on steel workpieces. It carries a GP3 manufacturer grade and belongs to the Flo-Lock series. The insert features a 1.57 mm cutting width and a maximum depth of cut of 3.05 mm, making it well suited for shallow to mid-depth groove profiles. A positive rake angle of 55 degrees promotes clean chip formation and reduces cutting forces on the workpiece.

This insert is intended for use in production turning environments where tight groove tolerances are required on steel components. The left-hand orientation suits specific toolholder configurations on gang-style or turret lathes. With an ISO code of FLGP-3062L and an insert size code of 3062, it fits toolholders designed around the Flo-Lock interface. Machinists and CNC operators working in job shops, production facilities, or aerospace and general manufacturing environments will find this insert appropriate for repetitive grooving cycles on steel bar stock and turned parts.

Key Features

• Micrograin solid carbide substrate for improved wear resistance and edge integrity
• PVD TiN coating reduces friction and extends tool life on steel workpieces
• Left-hand cutting orientation for compatible Flo-Lock toolholders
• Positive rake geometry at 55 degrees promotes efficient chip evacuation
• Corner radius range of 0.0050 to 0.0100 inches provides a controlled edge profile
• No full radius profile - suited for flat-bottom groove applications

Compatibility

Designed for use with TOOL-FLO Flo-Lock series toolholders accepting FLGP-style inserts in size 3062, with a 3/8 inch gage diameter. Verify toolholder hand orientation before ordering.

Installation Notes

This insert is installed and serviced by qualified CNC machinists or toolroom personnel. Always power down and lock out the machine before seating or replacing inserts. Use the appropriate torx or insert-clamp key specified by the toolholder manufacturer to secure the insert - do not overtighten by hand or with improvised tools. Inspect the insert pocket for debris or damage before seating a new insert to ensure proper support and accurate cutting geometry.
