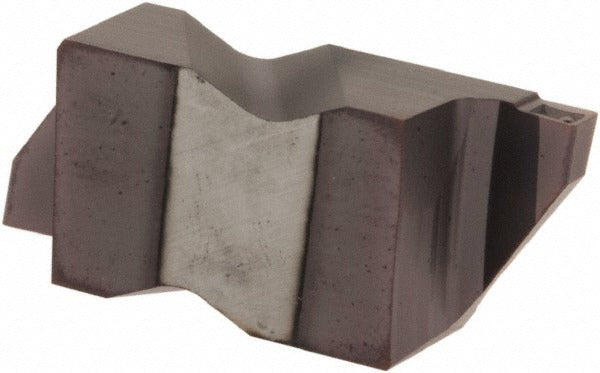

Tool-flo 563805RAC3R Grooving Insert FLG3105 AC3 Flo-lock

Product Description

The TOOL-FLO 563805RAC3R is a solid carbide grooving insert designed for precision turning and grooving operations on CNC lathes and turning centers. Built to the FLG-3105R ISO code within the Flo-Lock series, this double-ended insert features an AlTiN coating applied via PVD process, delivering strong heat resistance and extended tool life. It provides a 0.105 inch cutting width and a maximum depth of cut of 0.18 inches, making it suited for moderate-depth grooving passes. Machinists and tooling technicians working in production and job-shop environments install and index this insert on compatible Flo-Lock grooving toolholders.

This insert is intended for use on CNC turning equipment handling cast iron, non-ferrous metals, and stainless steel workpieces. The right-hand cutting orientation and neutral rake geometry make it appropriate for standard OD grooving applications. The double-end design allows the insert to be flipped for a second cutting edge, improving cost efficiency per insert in high-run production settings. Insert seat size 3 positions it within the mid-range of the Flo-Lock toolholder family.

Key Features

• Solid carbide construction with AlTiN PVD coating for heat and wear resistance
• 0.105 inch cutting width with maximum depth of cut of 0.18 inches
• Double-end design provides two usable cutting edges per insert
• Neutral rake geometry suitable for cast iron, non-ferrous metal, and stainless steel
• Corner radius range of 0.005 to 0.010 inches for controlled edge geometry
• Manufacturer grade AC3 with C2/C3 material grade classification

Compatibility

Designed for use with Flo-Lock series grooving toolholders accepting insert seat size 3 and the FLG-3105R insert style. Compatible primary workpiece materials include cast iron, non-ferrous metal, and stainless steel.

Installation Notes

This insert is indexed and secured by a qualified machinist or tooling technician following the toolholder manufacturer's clamping procedure. Power down and lock out the machine spindle before changing or indexing inserts. Inspect the insert pocket and clamping components for debris or wear before seating the new insert. Follow the toolholder manufacturer's recommended torque specifications for the clamping screw.
