Tool-flo 563694PLAC50C Grooving Insert AC50 Solid Carbide

Product Description

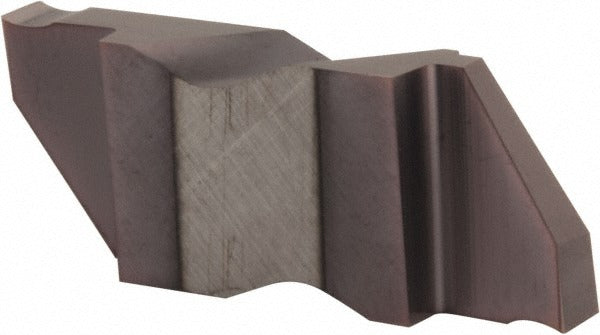

The TOOL-FLO 563694PLAC50C is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Manufactured in the AC50 grade with a PVD-applied AlTiN coating, this insert delivers heat resistance and wear life suited to steel workpiece materials. It features a 0.094 inch cutting width and a maximum depth of cut of 0.18 inches. The double-ended configuration and clamp-style holding method make it a productive choice for high-volume turning applications. Machinists and toolroom technicians working with Flo-Lock toolholders will find this insert a direct fit.

The 563694PLAC50C is configured for left-hand cutting and belongs to TOOL-FLO's Flo-Lock series, which uses a mechanical clamp insert-holding method. Its primary intended workpiece material is steel, covering material grades C5 and C6. This insert is appropriate for both production turning environments and job-shop applications where repeatable groove geometry and consistent surface finish on steel components are required.

Key Features

• Solid carbide construction in AC50 grade for toughness and edge stability in steel cutting
• AlTiN coating applied via PVD process for elevated heat resistance and extended tool life
• 0.094 inch cutting width with a maximum depth of cut of 0.18 inches
• Left-hand cutting orientation for specific turning configurations
• Double-ended insert design maximizes usable cutting edges per insert
• Chip breaker (CB) geometry with neutral rake and 3-degree lead angle for controlled chip formation
• Corner radius range of 0.005 to 0.010 inches for a controlled edge profile

Compatibility

Designed for use with TOOL-FLO Flo-Lock series grooving toolholders that accept FLG-style inserts with a 0.375 inch gage diameter and clamp-style retention. ISO code FLG-3094L-CB. Manufacturers catalog number FLG-3094L-CB.

Installation Notes
