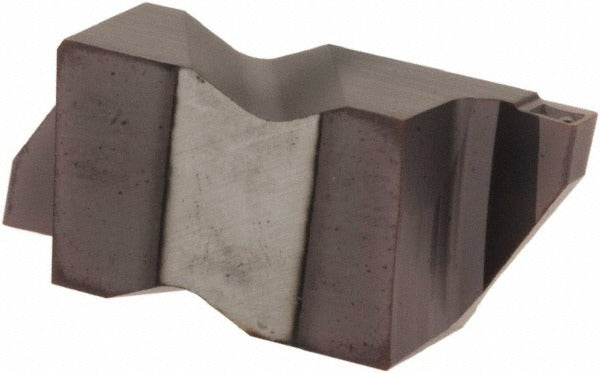

Tool-flo 563672PLAC3R Grooving Insert Flg 3072 Cb AC3 Left Hand

Product Description

The TOOL-FLO 563672PLAC3R is a solid carbide grooving insert designed for precision turning and grooving operations on CNC lathes and turning centers. Part of the Flo-Lock series, this left-hand insert carries the AC3 manufacturer grade and features an AlTiN coating applied via PVD process. The cutting width is 0.072 inches with a maximum depth of cut reaching 0.1200 inches. A chip breaker (CB) geometry is integrated into the insert face to control chip evacuation during interrupted or continuous grooving passes. The neutral rake and corner radius range of 0.0050 to 0.0100 inches make it well-suited for fine-tolerance groove profiles in demanding materials.

This insert is intended for machining cast iron, non-ferrous metals, and stainless steel. It fits production environments where consistent groove geometry and tool life are critical, including aerospace, automotive, and general industrial turning. The Flo-Lock series mounting format provides secure seating in compatible TOOL-FLO grooving toolholders. The left-hand orientation suits specific approach directions on gang-tool or turret-style lathe configurations. The ISO code for this insert is FLG-3072L-CB.

Key Features

• Solid carbide construction with AlTiN coating via PVD process for heat and wear resistance
• Left-hand insert orientation for compatible lathe turret configurations
• Cutting width of 0.072 inches with maximum depth of cut up to 0.1200 inches
• Integrated chip breaker (CB) geometry for controlled chip evacuation
• Neutral rake angle with corner radius range of 0.0050 to 0.0100 inches
• AC3 grade rated for cast iron, non-ferrous metals, and stainless steel

Compatibility

Designed for use in TOOL-FLO Flo-Lock series grooving toolholders accepting the FLG insert style, size code 3072CB. ISO code FLG-3072L-CB. Suitable for workpiece materials including cast iron, non-ferrous metal, and stainless steel. Material grade C2 and C3.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine in a locked-out, zero-energy state before any insert change. Seat the insert fully into the Flo-Lock pocket and confirm the chip breaker orientation aligns with the intended cut direction before resuming spindle operation. Verify approach direction matches the left-hand designation before engaging the workpiece. Consult the toolholder manufacturer torque specification for the clamping screw - do not use impact drivers on precision insert pockets.
