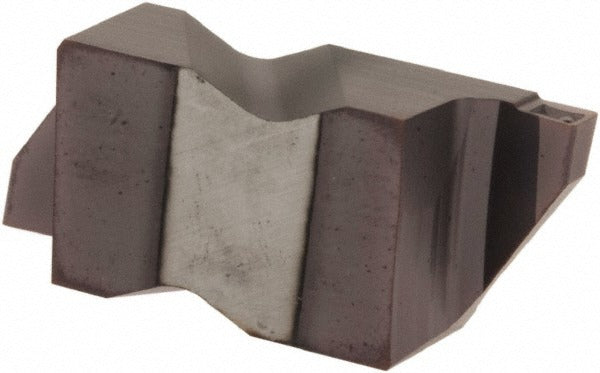

Tool-flo 563647RAC3R Grooving Insert AC3 Solid Carbide

Product Description

The TOOL-FLO 563647RAC3R is a solid carbide grooving insert designed for precision turning and grooving operations on CNC lathes and machining centers. Carrying the AC3 manufacturer grade with a PVD-applied AlTiN coating, this insert delivers thermal resistance and wear performance suited to demanding cutting environments. The right-hand orientation and Flo-Lock series geometry provide secure seating in compatible toolholders. Cutting width is 0.047 inches with a maximum depth of cut of 0.075 inches, making it appropriate for narrow, controlled groove profiles. This insert is installed and changed by machinists and tool-crib technicians as part of routine tooling maintenance on production turning equipment.

This insert is applied to grooving and parting operations on cast iron, non-ferrous metals, and stainless steel workpieces. It is suited to both roughing and finishing groove passes where dimensional accuracy and surface finish are required. The double-end configuration extends usable tool life by providing two cutting edges per insert. The neutral rake geometry and 0-degree lead angle support consistent chip formation across the listed workpiece materials in a production or job-shop turning environment.

Key Features

• Solid carbide construction with PVD AlTiN coating for heat and wear resistance on stainless steel and cast iron
• 0.047-inch cutting width and 0.075-inch maximum depth of cut for narrow, precise groove profiles
• Double-end insert design provides two usable cutting edges per insert
• Corner radius range of 0.005 to 0.010 inches reduces stress concentration at groove corners
• Neutral rake geometry with 0-degree lead angle for stable, predictable chip control
• Flo-Lock series seat size 3 for secure positive location in compatible toolholders

Compatibility

Designed for use in Flo-Lock series toolholders accepting insert seat size 3 and ISO code FLG-3047R. Compatible workpiece materials include cast iron, non-ferrous metal, and stainless steel. Refer to TOOL-FLO Flo-Lock toolholder documentation to confirm holder compatibility before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist with the machine powered off and all axes locked. Use the appropriate torque wrench and insert-clamping screw specified by the toolholder manufacturer - do not substitute hardware. Inspect the insert pocket and seating surfaces for chips or debris before seating the new insert. Follow the machine tool builder and toolholder manufacturer guidelines for clamping force and insert retention to prevent insert movement during cutting.
