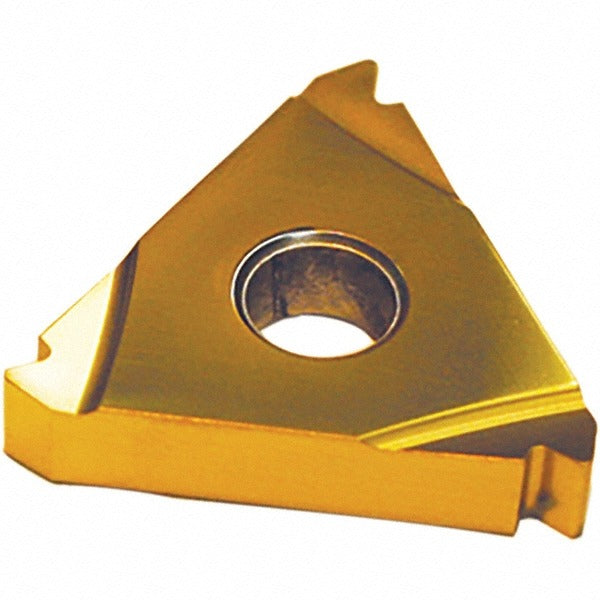

Tool-flo 32158AC50D Laydown Threading Insert 8 Tpi

Product Description

The TOOL-FLO 32158AC50D is a solid carbide laydown threading insert engineered for internal API Round thread cutting at 8 threads per inch (TPI). Manufactured from micrograin carbide with an AC50D grade and a PVD-applied AlTiN coating, this insert delivers reliable edge retention and heat resistance in demanding threading operations. The 60-degree included angle conforms to the API Round thread profile, making it a direct-fit solution for oilfield tubular and casing thread work. With a 1/2 inch inscribed circle (IC) and a thickness of 0.189 inches, the insert seats securely in compatible L43-series laydown toolholders. Licensed machinists and CNC lathe operators are the primary installers.

This insert is suited for internal threading operations on cast iron and steel workpieces, covering a broad range of industrial and oilfield applications where API Round thread forms are required. The AC50D grade is optimized for interrupted and continuous cuts in both ferrous and abrasion-resistant materials. It is commonly used in production threading on pipe couplings, tool joints, and similar tubular components. The laydown seating style simplifies indexing and ensures consistent thread geometry across multiple cutting edges.

Key Features

• Solid micrograin carbide substrate with AC50D grade for improved wear resistance
• PVD AlTiN coating for elevated heat and oxidation resistance during threading
• Internal API Round thread profile at 8 TPI with a 60-degree included angle
• 1/2 inch inscribed circle for use in L43-series laydown insert toolholders
• Designed for cast iron and steel workpiece materials
• Single tooth per side geometry for precise thread form control

Compatibility

Designed for use in L43-series laydown threading toolholders. Compatible with cast iron and steel workpiece materials. Conforms to the API Round internal thread standard.

Installation Notes

Installation should be performed by a qualified machinist or CNC lathe operator. Power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench and clamp screw specified by the toolholder manufacturer to secure the insert - do not overtighten with makeshift tools. Inspect the insert pocket for chips or debris before seating to ensure proper contact and thread geometry.
