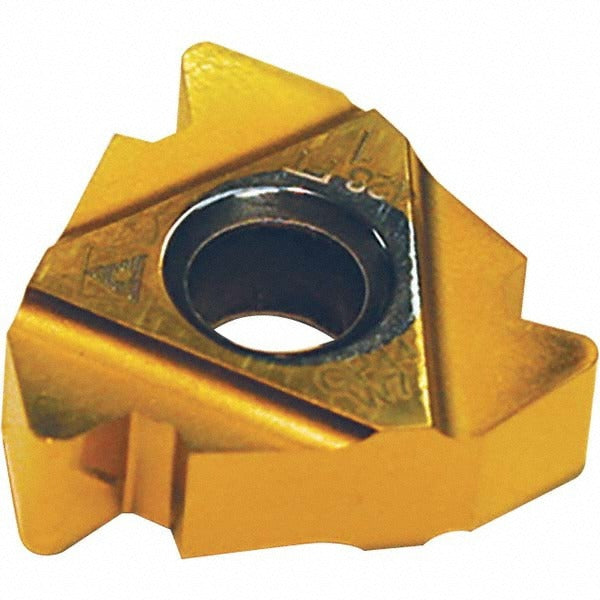

Tool-flo 09495AC54F Laydown Threading Insert 4 Tpi 5/8 in Ic

Product Description

The TOOL-FLO 09495AC54F is a solid carbide laydown threading insert designed for cutting API Rotary Shoulder Connection threads at 4 threads per inch (TPI). The insert features an AlTiN coating applied via PVD process, which improves heat resistance and wear life during demanding threading operations. With a 5/8 inch inscribed circle and a 60-degree included angle, this insert handles both internal and external thread profiles. It is used by machinists and tool and die professionals working in oilfield and energy sector applications where API-standard threaded connections are required.

This insert is suited for threading operations on cast iron and steel workpieces in applications requiring API Rotary Shoulder Connection thread standards. The LDS54 insert style and AC54F manufacturer grade make it a direct fit for compatible laydown-style toolholders. With 2 teeth per side and a 4 TPI pitch, it is used in heavy-duty threading of large-diameter pipe and drill collar connections common in oilfield equipment manufacturing and service.

Key Features

• Solid carbide construction for rigidity and long tool life in ferrous materials
• AlTiN PVD coating provides high heat resistance and extended wear life
• 4 TPI pitch with 60-degree included angle for API Rotary Shoulder Connection threads
• Cuts both internal and external thread profiles in a single insert style
• 5/8 inch inscribed circle with 0.252 inch thickness fits LDS54 laydown-style toolholders
• 2 teeth per side for efficient thread-form engagement on cast iron and steel

Compatibility

Designed for use in LDS54-series laydown threading toolholders. Suitable for threading cast iron and steel workpieces to API Rotary Shoulder Connection thread standards. Verify toolholder seating and insert pocket dimensions before installation.

Installation Notes

Installation is performed by qualified machinists on CNC or manual lathes equipped with laydown-style threading toolholders. Power down and lock out the machine before seating or removing inserts. Use the correct torque wrench and manufacturer-specified clamp screws to secure the insert without over-tightening. Inspect the insert pocket for chips or damage before each insert change to ensure proper seating and thread accuracy.
