Tool-flo 0251030AC50E On-edge Acme Threading Insert 3 Tpi

Product Description

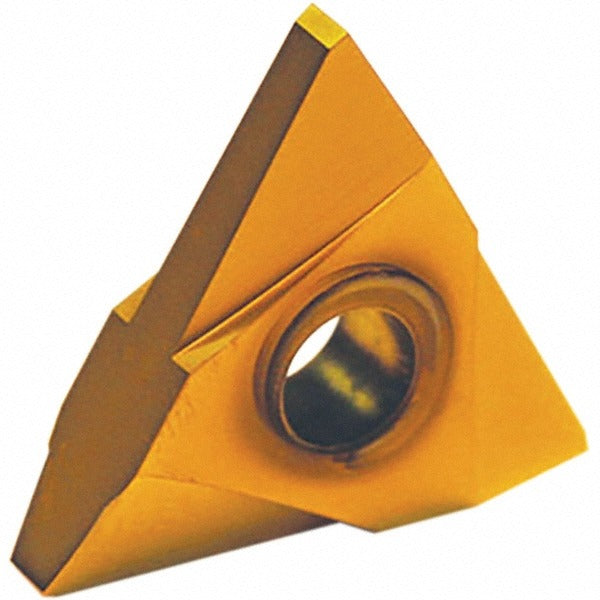

The TOOL-FLO 0251030AC50E is a solid carbide, on-edge threading insert designed for cutting Acme thread forms on both external and internal applications. It carries a neutral cutting direction and neutral rake geometry, making it suitable for use in straight-ahead threading operations without a preferred hand. The insert is finished with an AlTiN coating applied via PVD process, which improves heat resistance and extends tool life when threading ferrous materials. With a 0.625 inch inscribed circle and a cutting tip width of 0.1184 inches, it handles 3 TPI Acme threads on both external and internal profiles. This insert is typically installed by machinists and CNC lathe operators working in production or job-shop environments.

This insert is suited for threading operations on cast iron and steel workpieces, covering both external and internal Acme thread forms at 3 threads per inch. The on-edge series design positions the insert geometry for efficient chip control and consistent thread profile accuracy. It fits standard TNMA-style insert pockets and is appropriate for use on CNC turning centers and manual lathes equipped with compatible toolholders. Typical applications include power transmission components, lead screws, and other parts requiring Acme thread geometry in a production or maintenance machining context.

Key Features

• Solid carbide substrate with PVD AlTiN coating for heat resistance and extended tool life on ferrous materials
• Cuts both external and internal Acme thread forms at 3 TPI in a single insert style
• Neutral hand and neutral rake geometry for straight-ahead threading on CNC or manual lathes
• 0.625 inch inscribed circle fits standard TNMA-style insert pockets
• Cutting tip width of 0.1184 inches provides accurate Acme thread profile reproduction
• Cylindrical hole mounting for secure, repeatable seating in compatible toolholders

Compatibility

Designed for use in TNMA insert-style toolholders. Compatible primary workpiece materials are cast iron and steel. Verify toolholder pocket geometry and insert size code 54 acceptance before installation.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the machine spindle before seating or removing any insert. Confirm the toolholder pocket is clean and free of chips or debris before mounting to ensure proper insert seating and prevent premature edge failure. Do not exceed the insert's rated depth of cut or feed rate for the workpiece material being threaded.
