Tool-flo 0139000AC50C On-edge Threading Insert 60V

Product Description

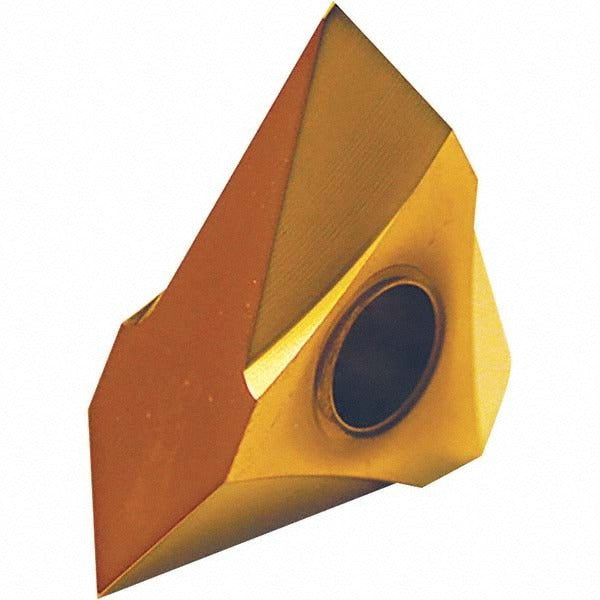

The TOOL-FLO 0139000AC50C is a solid carbide, on-edge threading insert designed for cutting 60-degree V-form threads on both external and internal applications. Manufactured in grade AC50C with a PVD-applied AlTiN coating, this insert handles a wide thread pitch range of 5 to 24 TPI. The neutral cutting direction and neutral rake geometry make it a versatile option for thread turning operations on CNC lathes and threading centers. With an inscribed circle of 0.5 inches and a thickness of 0.189 inches, it fits standard TNMA-style toolholders. Licensed machinists and CNC operators install this insert in production and job-shop threading operations.

This insert is suited for threading cast iron and steel workpieces in both residential-scale job shops and commercial manufacturing environments. The 5 to 24 TPI range covers a broad spectrum of unified and metric-equivalent thread pitches for standard fastener profiles. The AlTiN coating provides heat resistance at elevated cutting speeds, making it appropriate for dry or semi-dry threading cycles where coolant use is limited or controlled. It is a direct fit for TNMA insert-style threading toolholders commonly used on turning centers and manual engine lathes.

Key Features

• Solid carbide substrate in manufacturer grade AC50C for wear resistance in ferrous materials
• PVD AlTiN coating improves heat resistance and extends tool life in steel and cast iron
• Covers 5 to 24 TPI range for both external and internal 60-degree V threads in a single insert style
• Neutral cutting direction and neutral rake geometry provide flexible toolholder orientation
• TNMA insert style with 0.5-inch inscribed circle fits widely available threading toolholders
• Corner radius of 0.005 inches (maximum 0.007 inches) produces consistent thread root geometry

Compatibility

Designed for use in TNMA-style threading toolholders configured for 60-degree V external and internal thread forms. Primary workpiece materials are steel (P) and cast iron (K) per ISO material classification.
