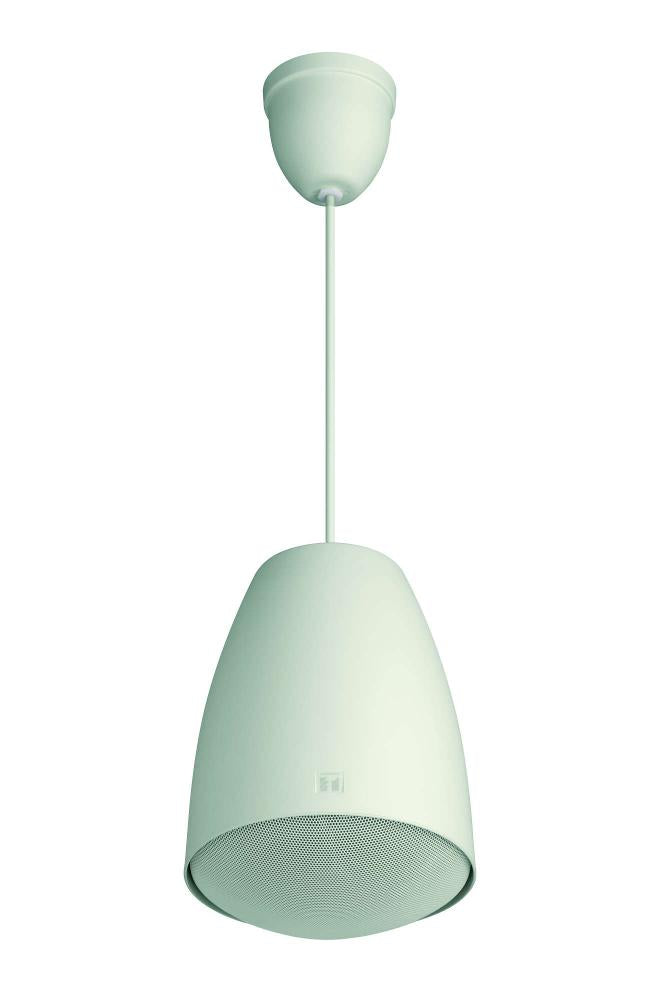

Toa PE-64 Pendant Speaker 6W

Product Description

The TOA PE-64 pendant speaker is designed for ceiling suspension installations and blends in with lighting equipment. A directly-attached 5 m cable allows the speaker to be suspended from high ceilings. The PE-64 is driven on high-impedance (100 V and 70 V) lines, with easily changeable input power. Ideally suited for BGM and announcements.

• Sturdy cable extendable up to 5 meters
• Excellent sound quality
• Input impedance easily changeable

Product Highlights

Stylish design inspired by lighting fixtures. Paintable. Bass-reflex type. Suitable for commercial, educational, and hospitality environments.

Product Information

Standard Information

• Brand: TOA
• Manufacturer Part Number: PE-64

Technical Specifications

• Brand Name: TOA
• Manufacturer Part Number: PE-64
• Product Name: PE-64 Pendant Speaker
• Product Type: Speaker
• Product Series: PE
• ADI Part Number: 65-PE64
• RMS Output Power: 6W
• Sensitivity: 90 dB
• Application/Usage: Airport,Commercial,Educational Facility,Hotel,Restaurant,Shopping Mall,Supermarket
• Speaker Installation: Indoor
• Maximum Frequency Response: 18 kHz
• Minimum Frequency Response: 100 Hz
• Features: Bass Reflex,Rugged Design
• Impedance: 8 ohms
• Form Factor: Pendant Mount
• RMS Output Power (W): 6
• Maximum Frequency Response (Hz): 18000
• Minimum Frequency Response (Hz): 100
• Active/Passive: Passive
• Number of Included Speakers: 1
• Speaker Configuration: Full-Range
• Power Handling At Low-Z / At 100 V:: 6 W
• Power Handling At 70 V:: 3 W
• Constant Voltage / Transformer Taps 70 V: 3 / 1.5 / 0.5 W or 8 Ohms Bypass
• Constant Voltage / Transformer Taps 100 V: 6 / 3 / 1 W or 8 Ohms Bypass
• Full-Range Driver: 1x 5" / 127 mm Paper Cone
• Frequency Response: 100 Hz to 18 kHz
• Construction Material: High-Impact Polystyrene, Metal Grille
• Rated input (100 V): 6 W
• Tappings (100 V): 100V LINE: 1.7kΩ (6W), 3.3kΩ (3W), 10 kΩ (1W) 70V LINE: 1.7kΩ (3W), 3.3kΩ (1.5W), 10 kΩ (0.5W)
• Rated impedance (low impedance): 8 Ω
• Speaker component: 12 cm cone-type
• Finish: HIPS resin, off-white (RAL 9010 or equivalent)
• Mount Type: Pendant Mount
• Indoor/Outdoor: Indoor
