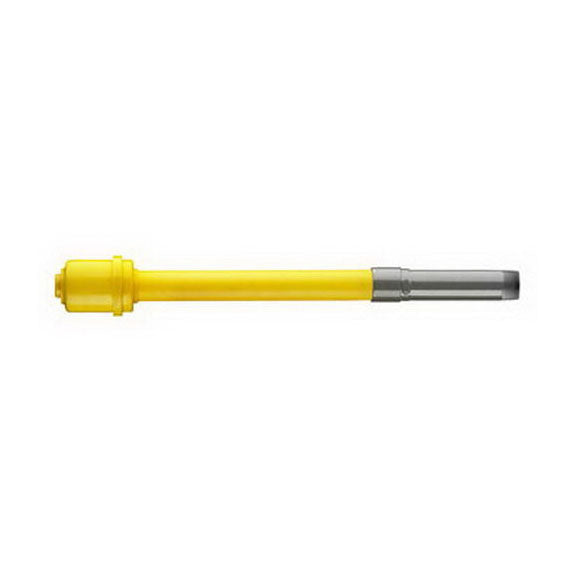

Titeflex TRANS-16-IPS 1 IPS x 1 NPT Transition Fitting

Product Description

The Titeflex TRANS-16-IPS is a 1 inch IPS x NPT transition fitting made from polyethylene. It is designed for use in underground natural gas or propane piping applications. This fitting offers a cost-effective joining method with simple assembly. It does not require additional equipment for installation—just chamfer the edges and push.

• Transition fitting for underground gas piping
• 125 psi pressure rating
• Durable polyethylene material

Product Highlights

This fitting is designed for direct burial and eliminates corrosive threats associated with metallic piping. It provides the lowest installed cost compared to other underground gas piping materials and comes with continuous lengths of flexible piping.

Product Information

Standard Information

• Brand: Titeflex Corporation
• MPN: TRANS-16-IPS

Technical Specifications

• Material: Polyethylene
• End Style: IPS x NPT
• Nominal Size: 1 in
• Pressure Rating: 125 psi
• Fitting/Connector Type: Transition
• Standards/Approval: ASTM D-2513, ASME D-B31.8-1995, CAN/CSA-B137.4, IAPMO/ISO 4437, NFPA-58, NFPA-54, US DOT Part 192.283, UPC Listed
