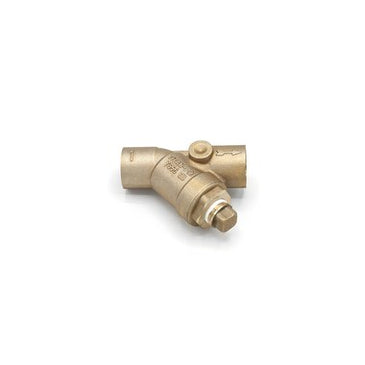

TITAN YS56EB-1 Y Strainer

Product Description

The TITAN YS56EB-1 Y Strainer features a cast bronze body designed for use in piping systems. It includes soldered end connections, a stainless steel straining element, and a tapped NPT blow-off connection.

• Size options range from one-fourth inch to three inches.
• Installation can be horizontal or vertical.
• Rated to 400 PSI for sizes one-fourth to one and a half inches; 315 PSI for sizes two to three inches.

Product Highlights

This strainer is effective in removing unwanted particles from fluid systems. Its design promotes ease of maintenance with straight threads for simple cap removal.

Product Information

Standard Information

• Brand: TITAN
• MPN: YS56EB-1

Technical Specifications

• Size: one-fourth inch to three inches
• Body Material: cast bronze
• End Connections: soldered
• WOG: 400 PSI @ 100 °F (for sizes one-fourth to one and a half inches)
• WOG: 315 PSI @ 100 °F (for sizes two to three inches)
• Straining Element: stainless steel
• Blow-Off Connection: tapped NPT
