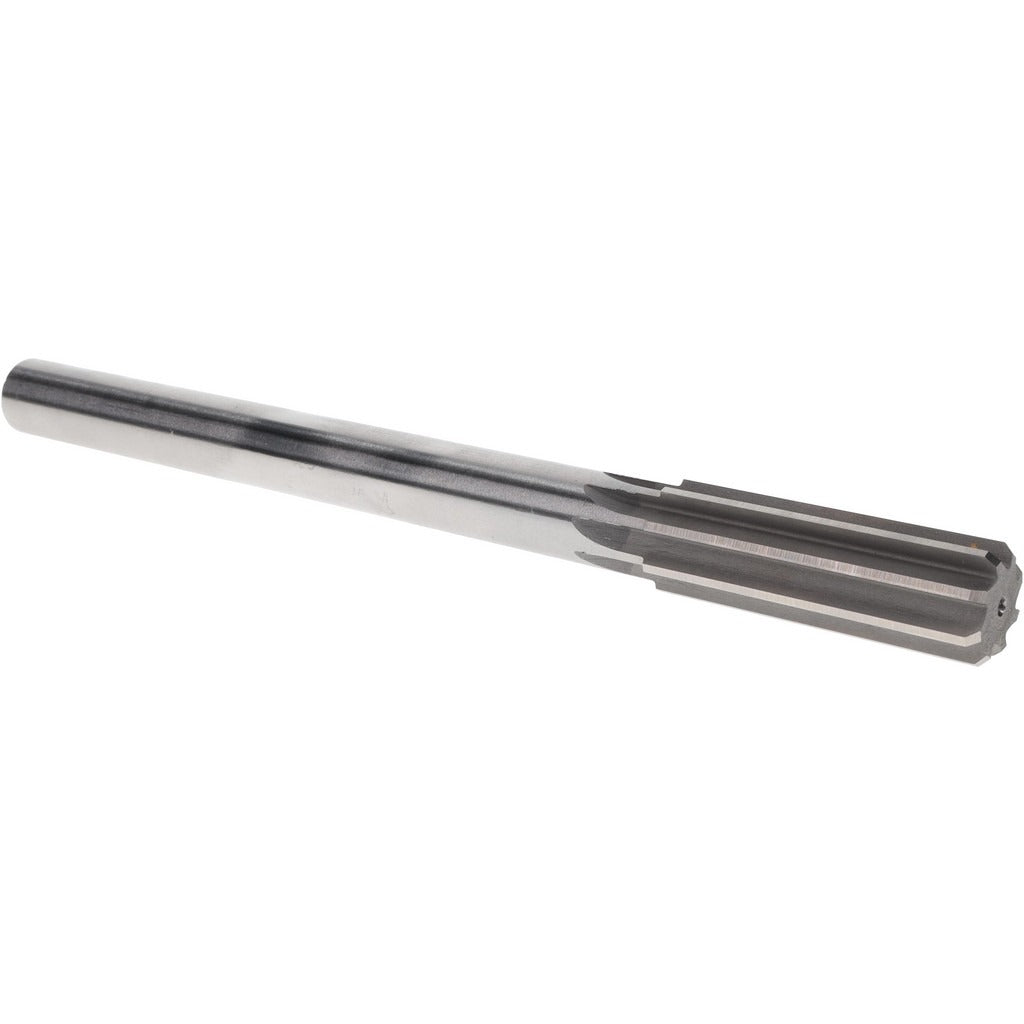

Titan Usa TR96228 Chucking Reamer 7/8 in Hss 8 Flute

Product Description

The TITAN USA TR96228 is a straight-flute chucking reamer designed for precision hole finishing in metal machining operations. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers consistent, accurate results in production and toolroom environments. The reamer measures 0.875 inches in diameter with a 10-inch overall length and a 2-5/8-inch flute length. Its 8-flute, right-hand cutting geometry provides smooth material removal and maintains tight diameter tolerances of +0.0001 to +0.0004 inches. Machinists and tool-and-die professionals use this reamer for finishing drilled holes to close-tolerance specifications in a wide range of ferrous and non-ferrous materials.

The TR96228 is suited for use in drill presses, lathes, and machining centers where a straight-cylindrical shank can be held securely in a drill chuck or collet. Its straight-flute design makes it well-suited for through-holes and materials that produce short, broken chips. This is a general-purpose chucking reamer appropriate for job shops, maintenance machining, and production work requiring consistent hole sizing and finish quality.

Key Features

• 0.875-inch reamer diameter with tolerance of +0.0001 to +0.0004 inches for precision hole finishing
• 8 straight flutes with right-hand cutting direction for smooth, controlled material removal
• High-speed steel (HSS) construction provides durability across a broad range of workpiece materials
• Bright, uncoated finish for straightforward resharpening and maintenance
• Straight-cylindrical shank for secure chuck or collet mounting on standard machine tools
• 10-inch overall length with 2-5/8-inch flute length suits moderate-depth hole finishing applications

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, lathes, and machining centers equipped with a standard chuck or collet capable of accepting a straight-cylindrical shank.

Installation Notes

Installation and use should be performed by qualified machinists familiar with machine tool operation and toolholding practices. Secure the straight-cylindrical shank firmly in a drill chuck or collet before operation and verify that runout is within acceptable limits for the required tolerance. Always reduce spindle speed and apply appropriate cutting fluid when reaming to extend tool life and maintain hole quality. Inspect the reamer for wear or damage before each use.
