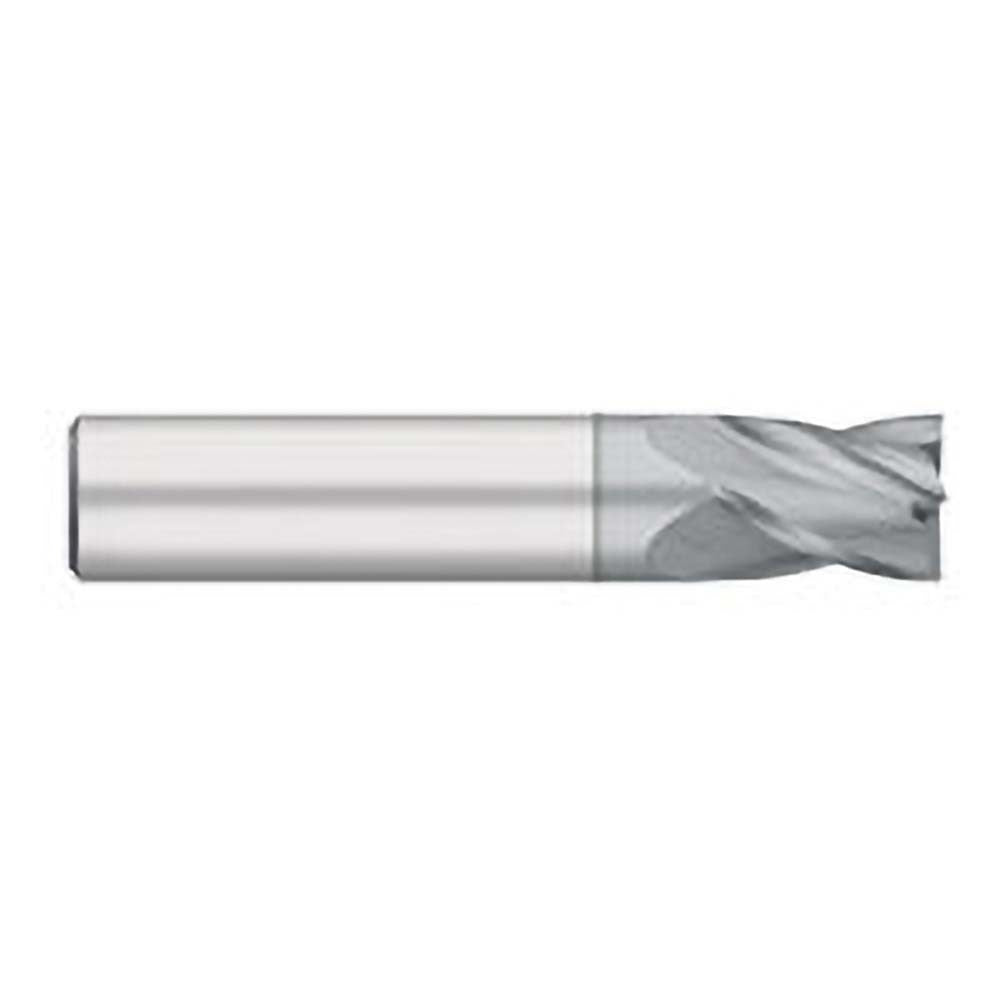

Titan Usa TC90932 Square End Mill 0.5 in 4 Flute Carbide Ticn

Product Description

The TITAN USA TC90932 is a single-end square end mill designed for precision milling operations in metal and hard material applications. Built from solid carbide micrograin material, it delivers the rigidity and edge retention needed for demanding cutting tasks. The tool features a 0.5 inch mill diameter, a 0.625 inch length of cut, and a 30-degree helix angle with four right-hand flutes. A titanium carbonitride (TiCN) coating reduces friction and extends tool life in ferrous and non-ferrous materials. Machinists and tool-and-die professionals install this end mill in CNC machining centers and manual knee mills.

This end mill is suited for slotting, profiling, and peripheral milling in production and job-shop environments. The centercutting geometry allows plunge entry, expanding its application in both roughing and finishing passes. The 0.5 inch shank diameter fits standard ER and side-lock toolholders commonly found in vertical machining centers. Its compact 2.5 inch overall length provides rigidity in close-tolerance setups where deflection must be minimized.

Key Features

• Solid carbide micrograin construction for wear resistance and edge sharpness
• TiCN coating reduces heat buildup and extends tool life in ferrous materials
• Centercutting design allows direct plunge entry without a pre-drilled hole
• 30-degree right-hand helix promotes efficient chip evacuation
• Four right-hand flutes for balance between material removal rate and finish quality
• Single-end configuration with a 0.5 inch shank for broad toolholder compatibility

Compatibility

Designed as a replacement-style solid carbide square end mill for use in standard 0.5 inch ER collet chucks, milling chucks, and side-lock toolholders on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder torque and runout specifications. Power down and lock out the spindle before inserting or removing the end mill. Ensure the shank is fully seated to the recommended engagement depth in the toolholder to prevent pullout during cutting. Inspect the cutting edges and coating for damage before each use.
