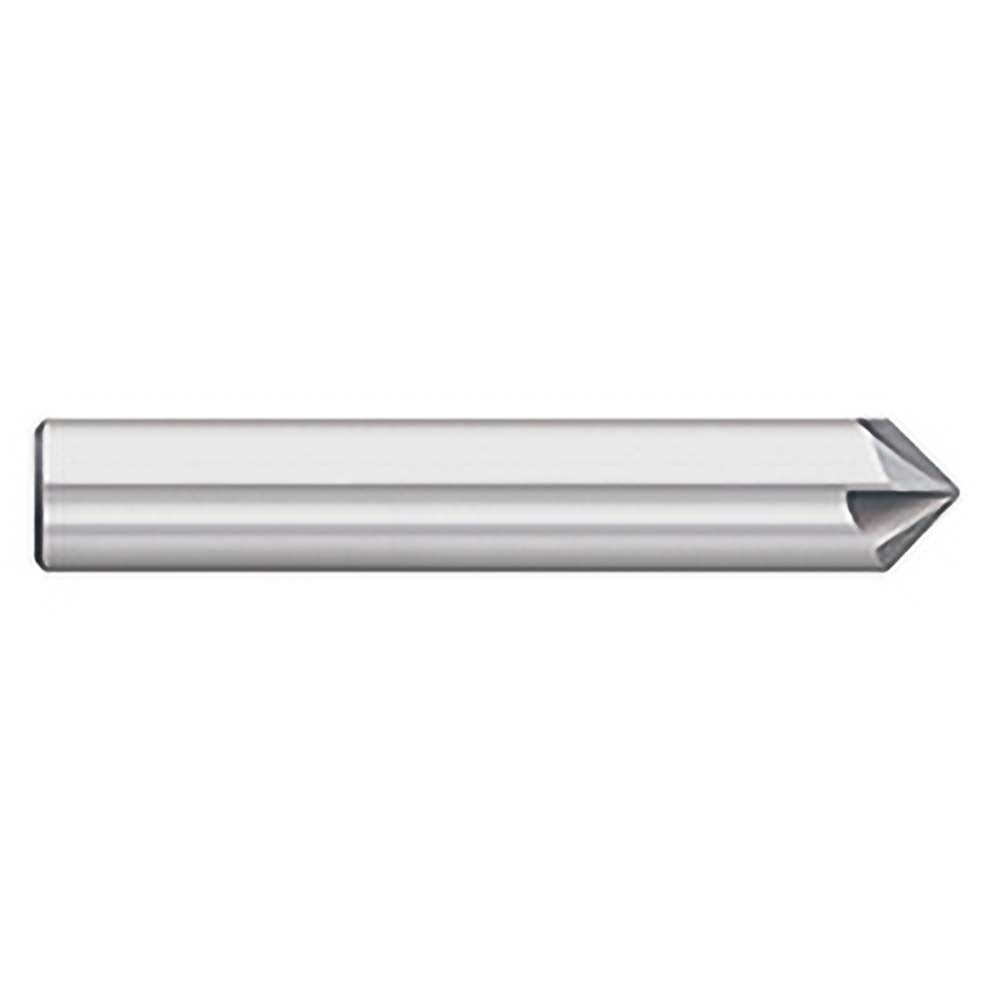

Titan Usa TC87753 Chamfer Mill 1/2 in 4 Flute Solid Carbide

Product Description

The TITAN USA TC87753 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on metal workpieces. Built with a 1/2 inch cutter head diameter and 1/2 inch shank diameter, this single-end tool features 4 flutes for efficient chip evacuation and a smooth finish. It ships with a bright/uncoated finish, making it suited for use on a range of ferrous and non-ferrous materials. The 45 and 90 degree included angle configuration provides versatility across common chamfering tasks. Overall length is 3 inches, and the tool weighs 0.3 pounds.

This chamfer mill is used in CNC machining centers and manual milling setups where consistent edge preparation is required. Typical applications include chamfering drilled holes, countersinking, and deburring part edges before assembly. The right-hand cutting direction and 4-flute geometry are well suited for production environments where surface finish and dimensional accuracy matter. Machinists, tool and die makers, and CNC operators working in job shops or manufacturing facilities are the primary installers and users of this tooling.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• 4-flute design promotes efficient chip evacuation and improved surface finish
• Dual included angle: 45 degrees and 90 degrees for versatile chamfering applications
• Right-hand cutting direction compatible with standard spindle rotation
• Bright/uncoated finish suitable for a wide range of workpiece materials
• 1/2 inch shank diameter fits standard collets and end mill holders

Compatibility

Designed as an OEM-style replacement and standard tooling option for 1/2 inch end mill holders, ER collet chucks, and side-lock holders used in CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Verify runout after clamping using an indicator before beginning a cut. Follow the machine manufacturer guidelines and applicable shop safety procedures when setting tool offsets and feeds.
