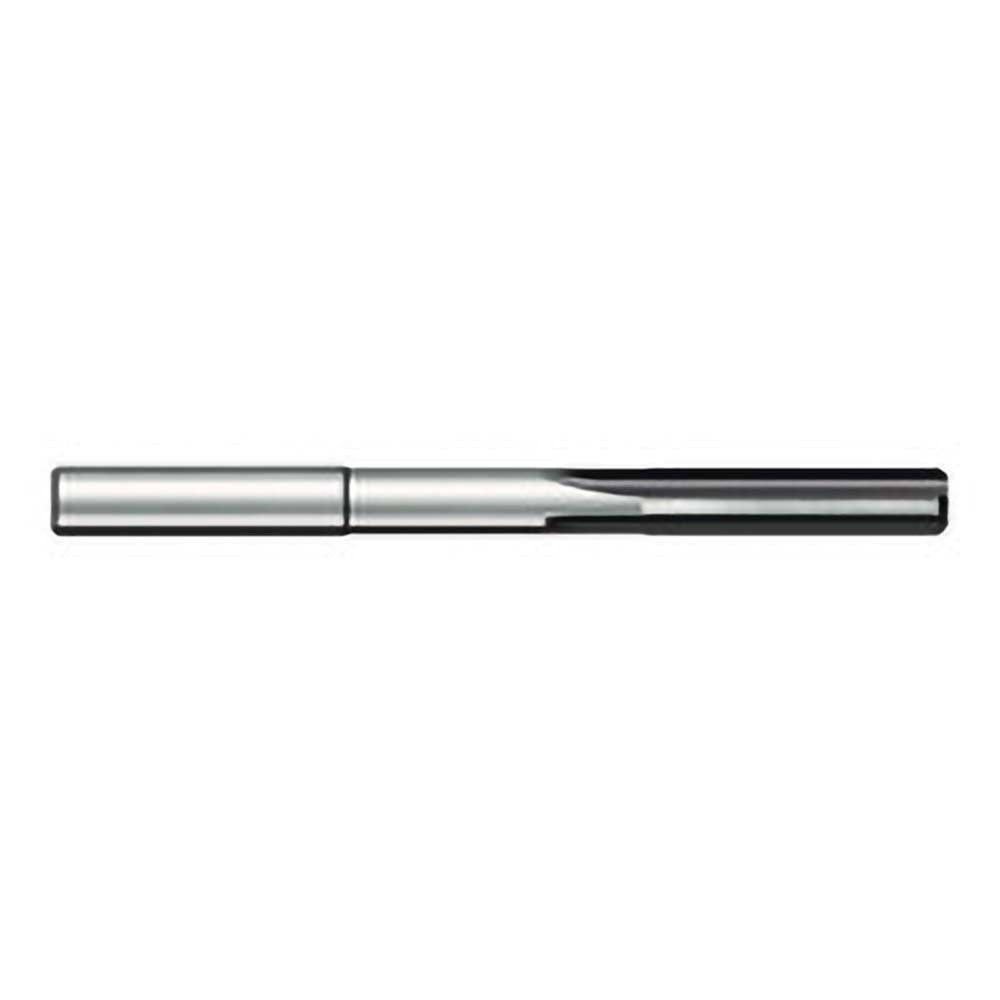

Titan Usa TC87567 Chucking Reamer 0.4740 in Solid Carbide

Product Description

The TITAN USA TC87567 is a solid carbide chucking reamer designed for precision hole finishing in machine shop and production environments. With a reamer diameter of 0.4740 inches and a tight tolerance of +0.0003 to -0.0000 inches, it delivers consistent bore sizing where accuracy is critical. The 6-flute straight design with a right-hand cutting direction provides smooth material removal and a clean finish. At 4 inches overall length with a 1-3/8 inch flute length, it is sized for standard chucking setups on drill presses, lathes, and CNC machining centers. Machinists and toolroom technicians are the primary users of this tool.

The TC87567 is suited for finishing pre-drilled or bored holes to tight dimensional tolerances in production and job shop applications. The straight-cylindrical shank seats directly into collet chucks, drill chucks, or floating holders without additional adapters. The bright uncoated solid carbide construction makes it appropriate for use in ferrous and non-ferrous materials where a coated tool is not required. This reamer belongs to the TITAN USA TC87 series, which covers decimal-inch chucking reamers in the 0.4000 to 0.4999 inch diameter range.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• Reamer diameter tolerance of +0.0003 to -0.0000 inches for consistent finished bore sizing
• 6 straight flutes with right-hand cutting direction for smooth chip evacuation
• Straight-cylindrical shank at 0.4740 inches diameter for direct chuck mounting
• Bright uncoated finish suitable for general-purpose reaming applications
• No coolant-through requirement simplifies setup on standard machine tool spindles

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill press, lathe, or CNC machining center setups that accept a straight-cylindrical shank tool in the 0.4740 inch diameter range.

Installation Notes

Installation and use of this reamer should be performed by qualified machinists or toolroom technicians familiar with reaming operations. Secure the straight-cylindrical shank firmly in a collet chuck or drill chuck before operation, and verify runout before cutting to avoid oversizing the bore. Always pre-drill or bore the hole to the appropriate stock allowance before reaming. Follow applicable shop safety standards and machine guarding requirements during operation.
