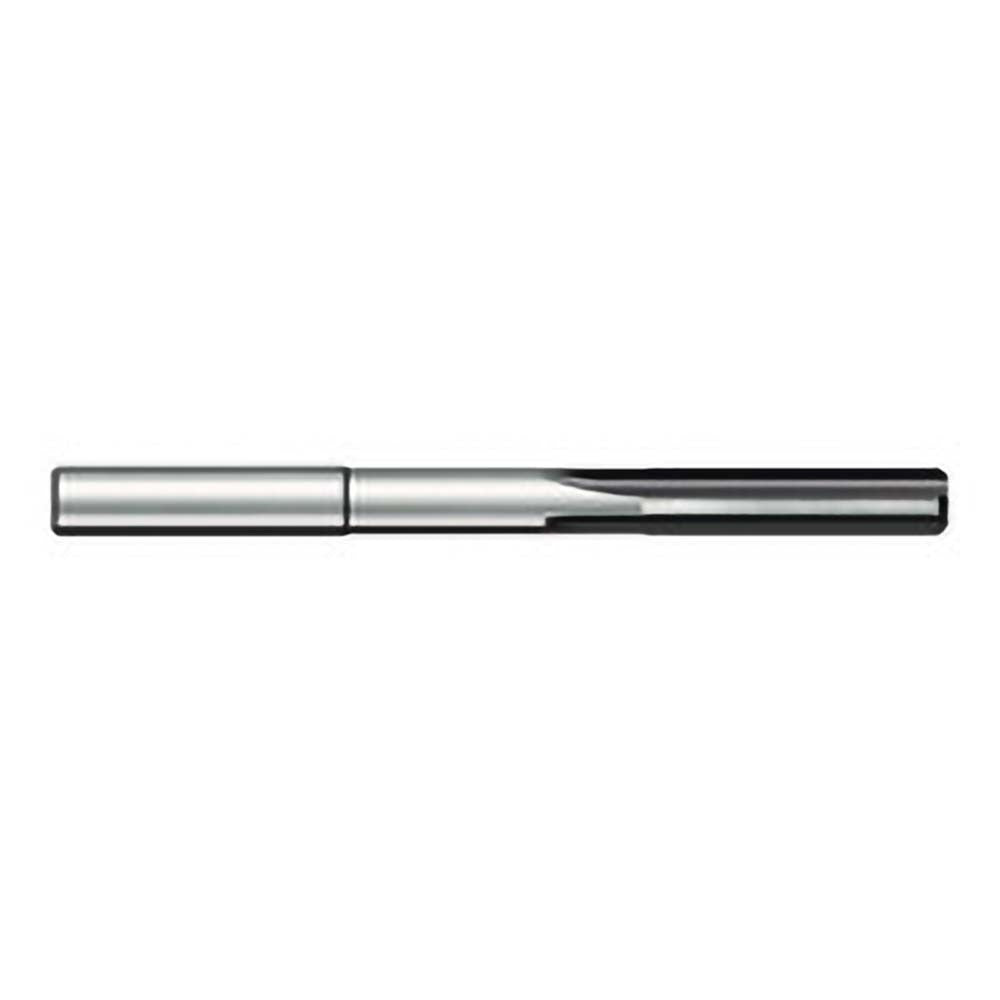

Titan Usa TC87235 Chucking Reamer Solid Carbide 0.1865 in

Product Description

The TITAN USA TC87235 is a straight-shank chucking reamer manufactured from solid carbide for precision hole finishing in metalworking applications. It features four straight flutes and a bright, uncoated finish. With a reamer diameter of 0.1865 inches and an overall length of 2.75 inches, this tool is sized for tight-tolerance finishing passes on drilled or bored holes. Solid carbide construction provides rigidity and wear resistance suited for production environments where dimensional accuracy and surface finish consistency are required. Machinists and tool-and-die professionals reach for carbide reamers when working hardened or abrasive materials where high-speed steel tooling falls short.

This reamer is intended for use in CNC machining centers, drill presses, and manual mills where a straight-shank tool can be held in a drill chuck, collet, or end mill holder. It is suited for finishing holes in steel, cast iron, aluminum, and similar materials in both job-shop and production-floor settings. The 7/8-inch flute length accommodates typical through-hole and shallow blind-hole reaming depths at this diameter range. It is packaged individually and sold as a single unit.

Key Features

• Solid carbide construction for rigidity and extended tool life in abrasive materials
• 0.1865 inch reamer diameter for precision hole sizing
• Four straight flutes with bright, uncoated finish
• Straight shank compatible with standard drill chucks and collet holders
• 7/8-inch flute length suitable for through-hole and shallow blind-hole applications
• Overall length of 2.75 inches for use in standard toolholding setups

Compatibility

Designed as an OEM-style replacement or direct-use chucking reamer for straight-shank toolholding systems on CNC machining centers, drill presses, and manual milling machines requiring a 0.1865-inch diameter finish reamer.

Installation Notes

This tool should be installed and operated by a qualified machinist familiar with speeds and feeds for solid carbide reamers. Secure the straight shank firmly in a drill chuck or precision collet before operation and verify runout before taking a finishing pass. Always use appropriate cutting fluid for the workpiece material to maximize tool life and surface finish quality. Inspect the cutting edges for chipping before each use, as carbide tooling is brittle and should not be subjected to interrupted cuts or side loading.
