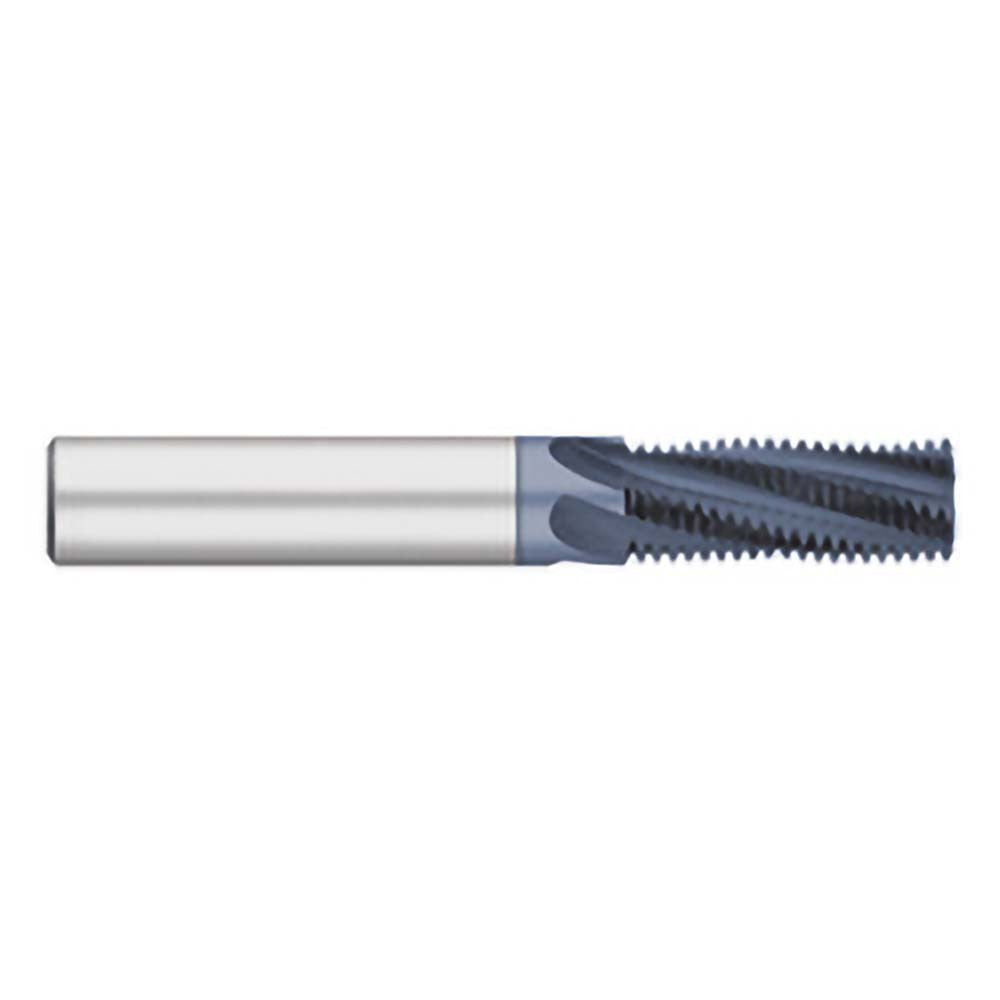

Titan Usa TC84035 Thread Mill 5/8-11 5 Flute Solid Carbide

Product Description

The TITAN USA TC84035 is a solid carbide helical flute thread mill designed for cutting 5/8-11 UNC threads in both internal and external applications. With 5 flutes and an AlTiN coating, this tool handles demanding threading operations in ferrous and hardened materials where heat resistance and edge retention are critical. The 0.4700-inch cutting diameter pairs with a 1/2-inch shank for secure tool holding in standard milling chucks and collet systems. The 1.25-inch length of cut accommodates typical thread depth requirements on production floors and job shop setups. This tool is installed and operated by machinists and CNC programmers running vertical machining centers or multi-axis mills.

This thread mill is suited for production and prototype machining environments where a single tool must produce both internal and external 5/8-11 threads. Its 3.5-inch overall length provides clearance for deep-pocket threading and fixture-heavy setups. The helical flute geometry promotes chip evacuation during the thread milling cycle, making it appropriate for blind holes and through-hole applications alike. No coolant-through capability is present, so flood coolant or mist systems applied externally are the standard approach for thermal management during the cut.

Key Features

• Cuts 5/8-11 UNC threads in both internal and external configurations from a single tool
• 5-flute helical geometry improves chip evacuation and surface finish in the thread form
• AlTiN coating provides high-temperature hardness and oxidation resistance for dry or semi-dry cutting
• Solid carbide construction delivers rigidity and edge life superior to high-speed steel alternatives
• 1/2-inch shank diameter fits standard ER collets, milling chucks, and hydraulic holders
• 3.5-inch overall length provides reach for deep-pocket and tall-fixture threading setups

Compatibility

Designed for use on CNC vertical machining centers and multi-axis mills capable of helical interpolation; compatible with any spindle accepting a 1/2-inch shank tool holder.

Installation Notes

Thread milling requires a CNC control capable of helical interpolation — verify program compatibility before setup. Secure the 1/2-inch shank with appropriate tool holding torque per the tool holder manufacturer specifications and confirm runout with a dial indicator before cutting. Power down and lock out the spindle before changing or inspecting the tool. Do not use this tool on manual mills lacking CNC interpolation capability.
