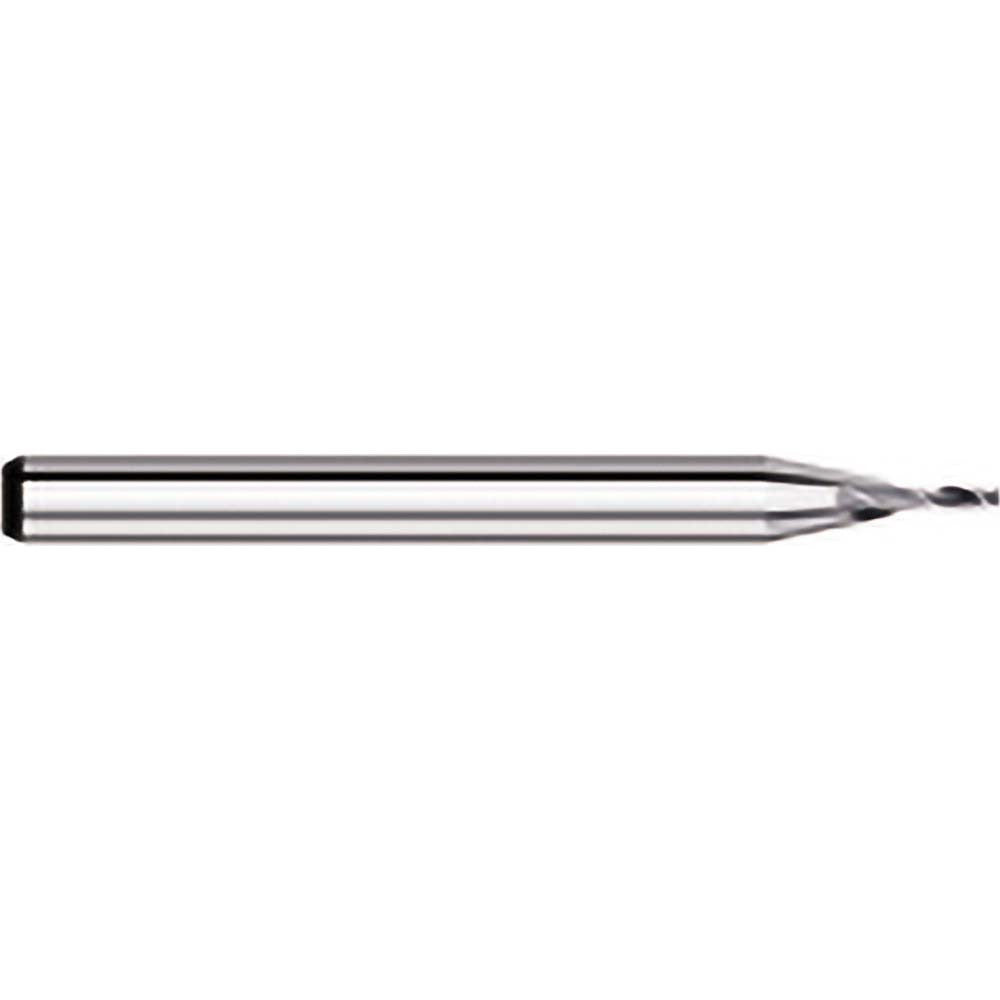

Titan Usa TC56070 Square End Mill 0.07 in 2 Flute Carbide

Product Description

The TITAN USA TC56070 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.0700-inch cutting diameter and a 0.21-inch length of cut, this tool is suited for fine detail work, slotting, and profiling in tight geometries. The 0.125-inch shank diameter fits standard collets and tool holders common to CNC machining centers and manual mills. A 30-degree helix angle promotes smooth chip evacuation and reduced cutting forces. The bright uncoated finish makes it a straightforward choice for general-purpose carbide milling without specialty coating requirements. Solid carbide micrograin construction provides rigidity and edge retention at small diameters.

This end mill is used in machine shops and production environments where small-diameter, high-precision cuts are required. The two-flute geometry and upcut flute direction are well suited for slotting and plunge operations where chip clearance is a priority. The right-hand cut and right-hand flute configuration follow standard CNC toolpath conventions. At 1.5 inches overall length, this is a compact tool intended for short-reach applications. Machinists working with aluminum, brass, plastics, and softer steels will find the geometry and micrograin carbide grade appropriate for their work.

Key Features

• Solid carbide micrograin construction for edge retention and rigidity at small diameters
• 0.0700-inch cutting diameter with 0.21-inch length of cut for fine detail and slotting work
• 30-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Upcut flute direction clears chips away from the workpiece during slotting and profiling
• Centercutting design allows direct plunge entry into the workpiece
• Bright uncoated finish — no coating to flake or delaminate, suitable for general-purpose use

Compatibility

Designed for use in CNC machining centers, manual knee mills, and similar machine tools accepting a 0.125-inch shank via standard ER collets or precision tool holders.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and locked out before inserting or removing the tool from the collet or holder. Seat the shank fully to the recommended depth in the collet and torque the nut to the collet manufacturer specification. Inspect the cutting edges for chips or damage before each use, as carbide tools at small diameters are brittle and sensitive to side loading.
