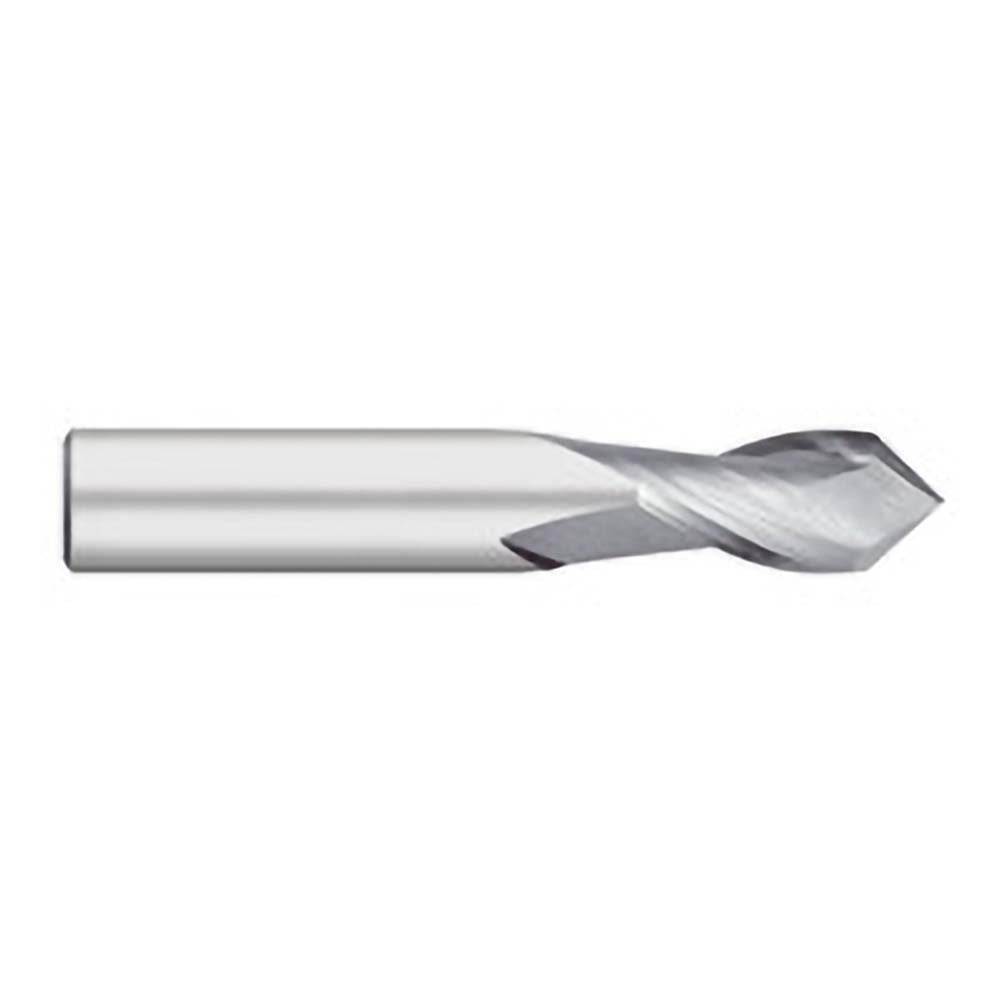

Titan Usa TC32008 Drill Mill 1/8 in 2 Flute Solid Carbide

Product Description

The TITAN USA TC32008 is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. With a 1/8 inch diameter and a 90-degree point angle, this tool transitions cleanly between plunge cutting and peripheral milling without a tool change. The 2-flute geometry supports chip evacuation in both ferrous and non-ferrous materials. The uncoated solid carbide construction provides consistent cutting performance in applications where coating is unnecessary or where regrinding is anticipated. Machinists and tooling technicians use this type of drill mill in CNC machining centers and manual knee mills when tight tolerances and small-diameter features are required.

This drill mill is suited for small-feature work in production and prototype machining environments. The 1/2 inch length of cut accommodates shallow-to-moderate pocket depths typical of precision component work. The 1/8 inch shank diameter fits standard ER collet chucks and end mill holders commonly found in vertical machining centers. It is appropriate for use in aluminum, brass, plastics, and mild steels where a compact, rigid cutting tool is needed.

Key Features

• Solid carbide construction for rigidity and wear resistance in small-diameter cutting
• 90-degree point angle enables accurate spot drilling and center-starting before peripheral milling
• 2-flute design promotes chip clearance during plunge and side milling operations
• 1/2 inch length of cut supports shallow pocket and slot milling
• Uncoated finish allows for regrinding and suits non-ferrous and plastic applications
• 1/8 inch shank diameter compatible with standard ER and end mill holder tooling systems

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide drill mill for machining centers and manual mills accepting 1/8 inch shank tooling.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in an e-stop or locked-out state. Seat the shank fully into the collet or end mill holder and torque the retention nut per the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use. Do not exceed the recommended spindle speeds and feed rates for the workpiece material and tool diameter.
