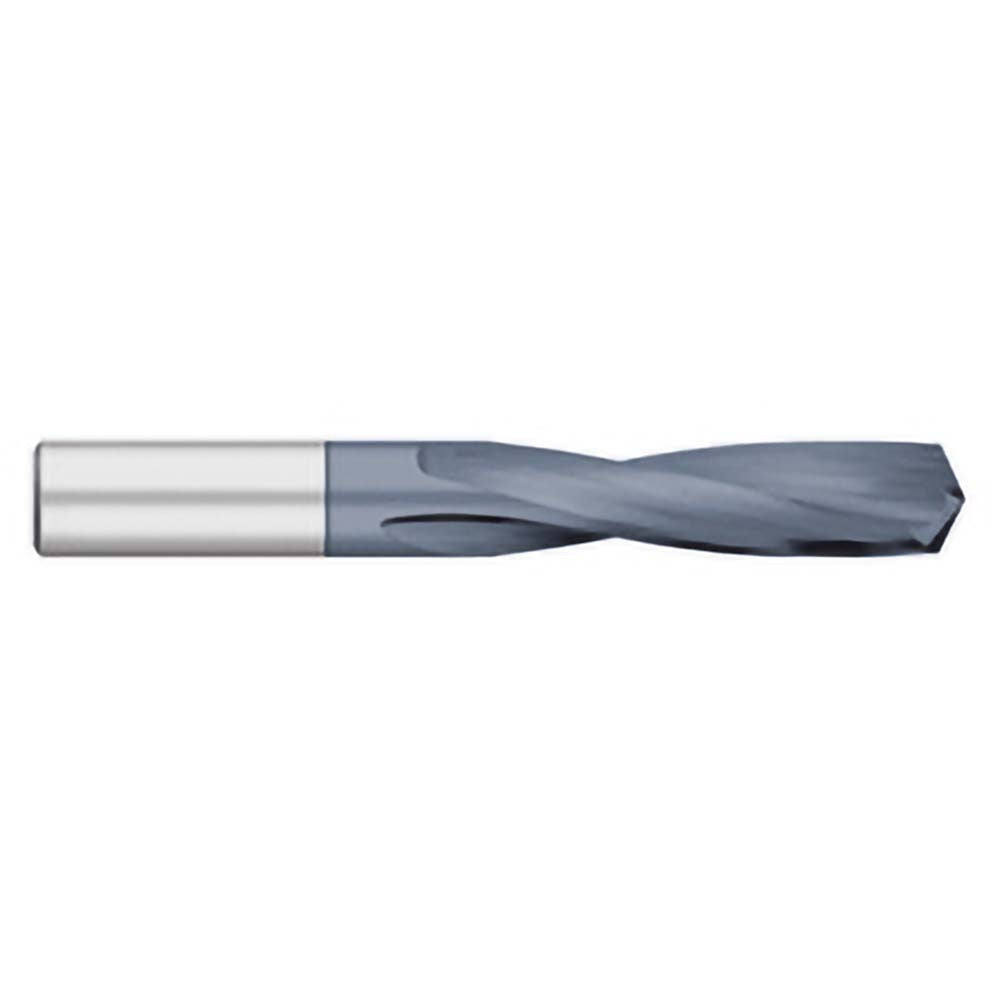

Titan Usa TC29201 Drill Bit Size 1 Solid Carbide Altin

Product Description

The TITAN USA TC29201 is a screw machine length drill bit designed for precision drilling in metal, composites, and other hard materials. Built from solid carbide and coated with AlTiN (aluminum titanium nitride), this bit delivers extended tool life and heat resistance in demanding production environments. It features a 135-degree split point for fast, accurate starts without a center punch, and a right-hand spiral flute geometry that promotes clean chip evacuation. At 2.5 inches overall length with a 1.25-inch flute length, this short-series bit is engineered for rigidity and minimal deflection in close-clearance drilling operations.

This drill bit is suited for metalworking and machining applications where hole accuracy and tool longevity are critical. The screw machine length format is a standard choice for CNC machining centers, drill presses, and manual machines where stub-length rigidity reduces runout. It is commonly used in production shops, tool-and-die operations, and maintenance environments drilling ferrous and non-ferrous metals. The AlTiN coating makes it particularly effective in dry or minimal-lubrication cutting conditions at elevated speeds.

Key Features

• Solid carbide construction for high wear resistance and rigidity
• AlTiN coating provides thermal protection and extended tool life in dry cutting
• 135-degree split point enables self-centering starts and reduces thrust load
• Screw machine length (2.5 inches OAL) minimizes deflection in tight setups
• Right-hand, regular spiral flute promotes efficient chip evacuation
• Straight cylindrical shank compatible with standard drill chucks and collets

Compatibility

Designed as an OEM-style replacement and standard production drill bit for use in CNC machining centers, drill presses, and manual drilling equipment accepting straight-shank tooling in the 0.2000 to 0.2500 inch drill size range.

Installation Notes

Installation and operation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify shank seating and chuck or collet tightness before operation. Follow the machine manufacturer and applicable shop safety guidelines for speeds, feeds, and coolant use appropriate to the workpiece material.
