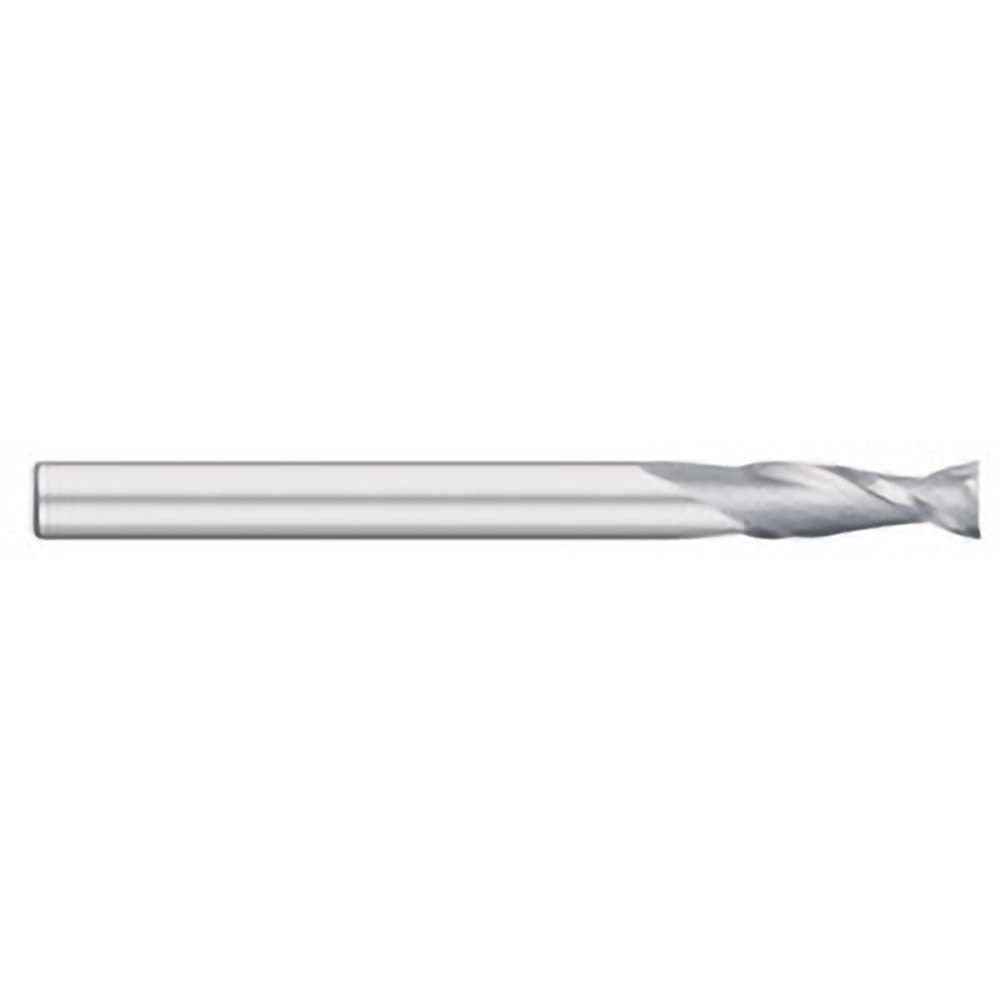

Titan Usa TC17048 Square End Mill 0.75in 2 Flute Carbide

Product Description

The TITAN USA TC17048 is a solid carbide square end mill designed for precision milling operations in metal fabrication, toolrooms, and production machining environments. With a 0.75-inch cutting diameter, 3-inch length of cut, and 6-inch overall length, this tool handles deep slotting, profiling, and peripheral milling in a single setup. The 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. The bright, uncoated finish makes it well-suited for non-ferrous metals, plastics, and certain ferrous materials where coating is not required. It is typically installed and operated by machinists and CNC programmers working on vertical and horizontal milling machines.

This end mill is intended for use in CNC machining centers, manual knee mills, and toolroom milling applications where a 0.75-inch shank diameter toolholder is available. The 2-flute configuration provides generous flute gullet volume, making it effective for full-slot cuts and applications requiring strong chip clearance. The right-hand cut, right-hand flute, upcut geometry is the standard configuration for conventional milling operations across a broad range of workpiece materials including aluminum, brass, and mild steel.

Key Features

• 0.75-inch cutting diameter with matching 0.75-inch shank for direct-fit in standard ER and side-lock holders
• 3-inch length of cut for deep cavity and extended-reach milling operations
• 2-flute upcut geometry for high chip clearance in slotting and full-width cuts
• 30-degree helix angle for reduced cutting forces and improved surface finish
• Micrograin solid carbide construction for rigidity, wear resistance, and dimensional accuracy
• Centercutting capable, allowing plunge entry directly into the workpiece

Compatibility

Designed as a standard-shank solid carbide square end mill compatible with 0.75-inch bore ER collet chucks, Weldon side-lock holders, and shrink-fit toolholders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before loading or unloading the tool. Seat the shank fully into the toolholder to the recommended gauge line and torque the retention mechanism per the toolholder manufacturer specifications. Inspect the cutting edges for chips or damage before each use, and confirm runout with a dial indicator when precision tolerances are required.
