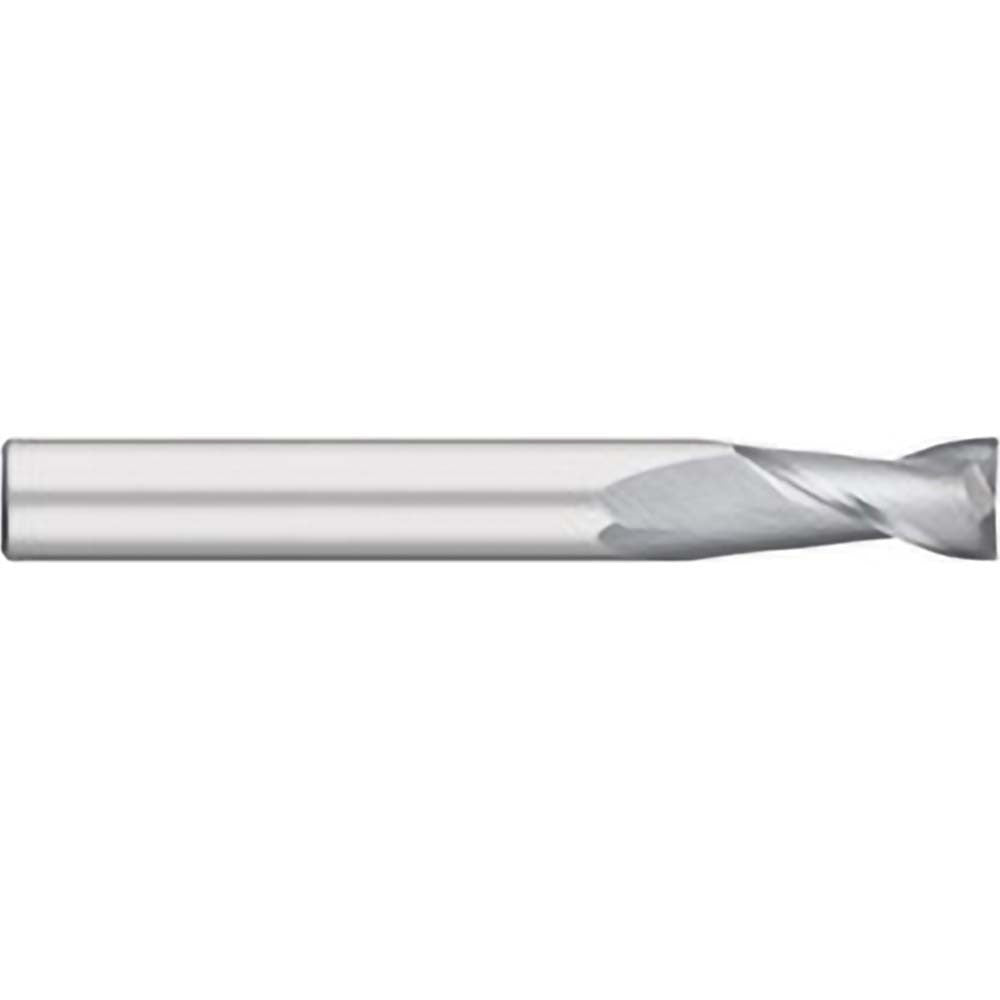

Titan Usa TC15017 Square End Mill 0.25in 2 Flute Solid Carbide

Product Description

The TITAN USA TC15017 is a 2-flute square end mill designed for general milling operations in a wide range of metalworking and machining applications. Manufactured from solid carbide with a micrograin grade, it delivers the rigidity and edge retention needed for precise slotting, profiling, and peripheral milling. The cutter measures 0.25 inches in diameter with a 1 inch length of cut and a 4 inch overall length. A 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. The bright, uncoated finish makes it straightforward to inspect for wear. This tool is installed by machinists and CNC operators across job shop and production environments.

The TC15017 is suited for light-to-moderate material removal in ferrous and non-ferrous metals, plastics, and composites. Its 0.25 inch shank diameter fits standard collets and end mill holders on vertical machining centers, knee mills, and CNC routers. The right-hand cut, right-hand flute, upcut configuration is the most common setup for conventional milling passes. The centercutting geometry allows plunge entry, giving the operator flexibility in toolpath programming without requiring a pre-drilled starting hole.

Key Features

• Solid carbide micrograin construction for superior hardness and edge retention
• 2-flute design with 30-degree helix for effective chip evacuation in slotting operations
• Centercutting geometry allows direct plunge milling
• Right-hand cut, upcut flute direction suits conventional and climb milling passes
• Bright, uncoated finish compatible with a wide range of materials and cutting fluids
• 0.25 inch shank fits standard ER collets and end mill holders

Compatibility

Designed as a standard 0.25 inch square end mill for use in any vertical machining center, knee mill, or CNC router equipped with a compatible collet or end mill holder accepting a 0.25 inch shank.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the spindle before changing tooling. Seat the shank fully into the collet or holder and torque the retention nut per the toolholder manufacturer's specification. Inspect the cutting edges for chips or damage before each use and replace the tool if edge degradation is observed.
