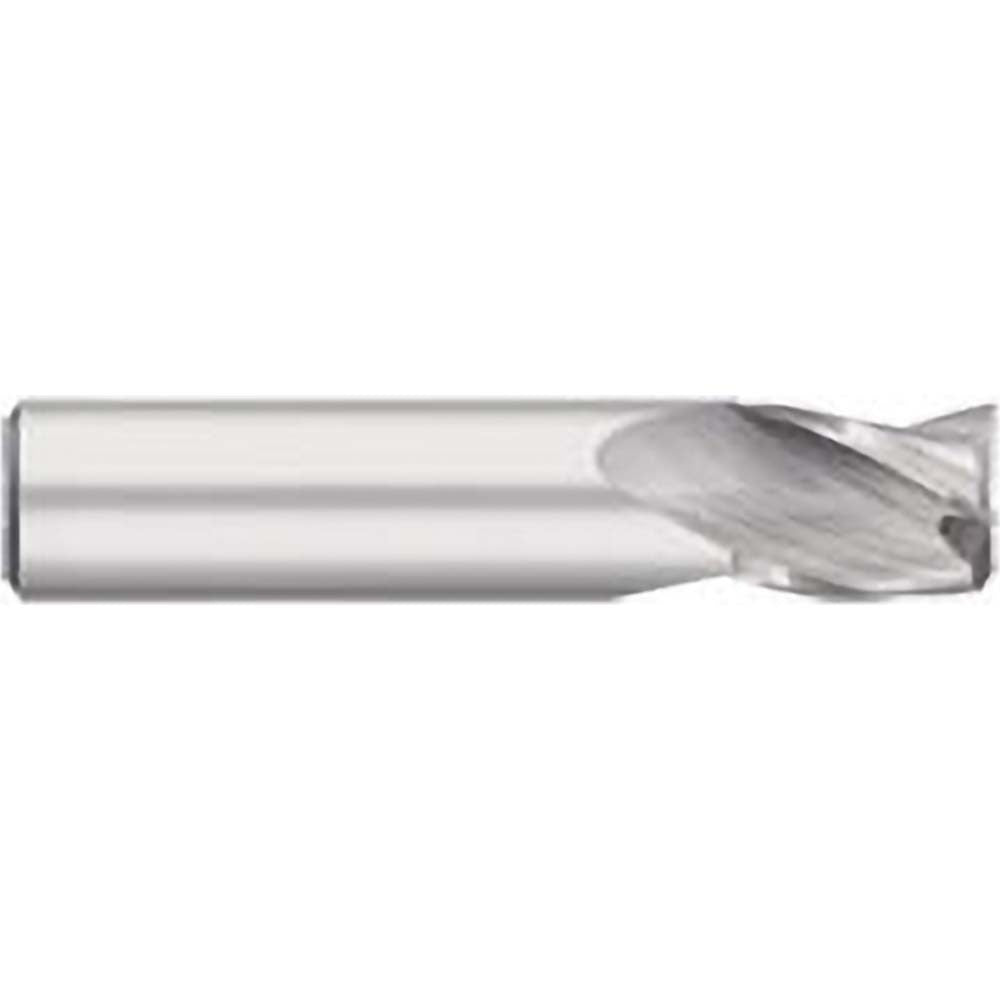

Titan Usa TC10432 Square End Mill 1/2 in 3 Flute Solid Carbide

Product Description

The TITAN USA TC10432 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. With a 0.5-inch cutting diameter, 3 flutes, and a 30-degree helix angle, this tool delivers efficient chip evacuation and smooth cutting action across a range of milling operations. The micrograin carbide construction provides edge rigidity and wear resistance suitable for demanding shop environments. It is centercutting, allowing direct plunge entry without pre-drilling. Typical users include machinists and CNC operators running production or prototype work in job shops, tool rooms, and manufacturing facilities.

This end mill suits general-purpose slotting, profiling, and peripheral milling applications. The upcut flute geometry promotes chip clearing in conventional and CNC vertical milling setups. With a 0.625-inch length of cut and a 2.5-inch overall length, it fits standard toolholding in most knee mills and machining centers. The 0.5-inch shank diameter seats directly in ER collets, end mill holders, and shrink-fit toolholding systems of matching bore size.

Key Features

• Solid micrograin carbide construction for improved edge retention and rigidity
• 3-flute geometry balances chip load capacity with cutting speed
• 30-degree helix angle promotes smooth chip evacuation and reduced cutting forces
• Centercutting design allows direct plunge milling without pilot holes
• Right-hand cut and right-hand flute configuration for standard spindle direction
• Uncoated finish suitable for use with coolant in a broad range of work materials

Compatibility

Designed as a direct-fit replacement or upgrade for standard 1/2-inch shank square end mills used in vertical machining centers, knee mills, and CNC routers with compatible toolholding.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and the tool changer or spindle is locked before changing tooling. Seat the shank fully into the collet or holder to the minimum recommended insertion depth and torque the retention hardware per the toolholder manufacturer specifications. Verify runout at setup before engaging the cut.
