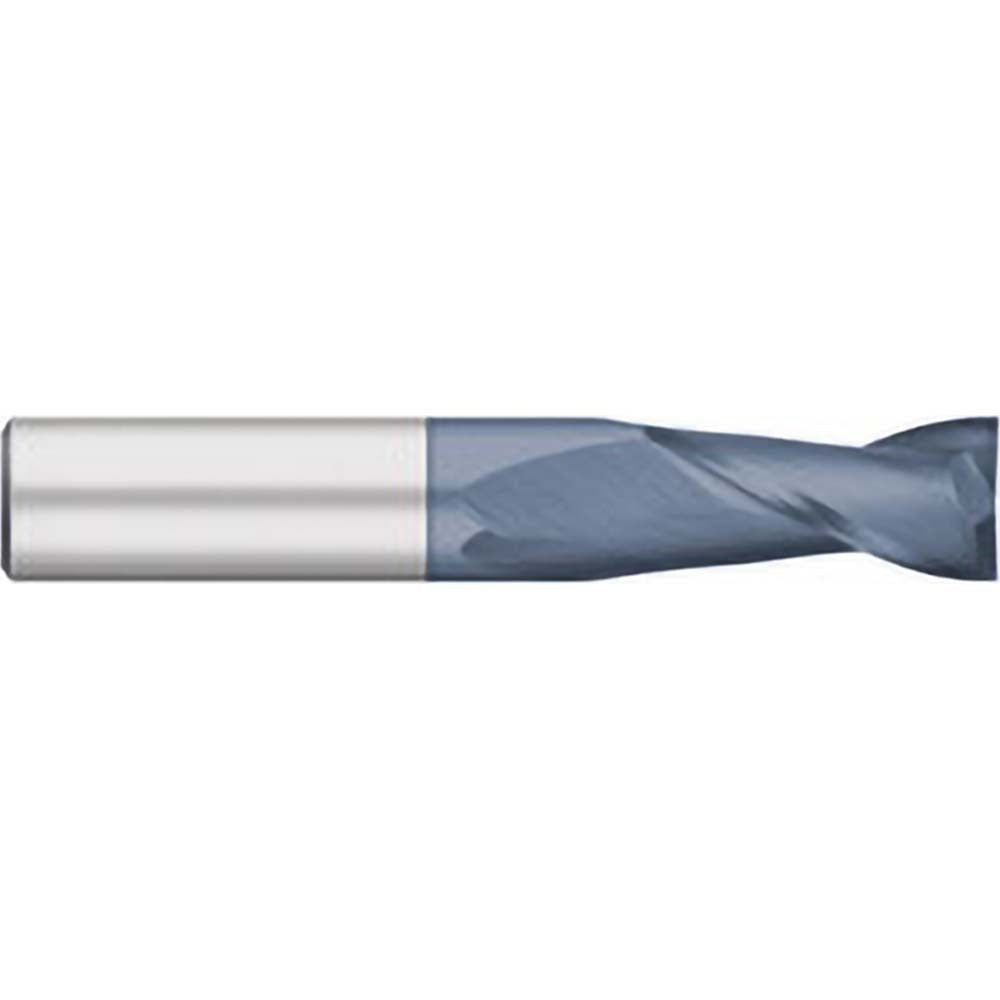

Titan Usa TC10108 Square End Mill 0.125in 2 Flute Altin Carbide

Product Description

The TITAN USA TC10108 is a 2-flute solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.125 inch cutting diameter and a 0.5 inch length of cut, this end mill handles slotting, profiling, and contouring in tight geometries. The micrograin carbide substrate delivers wear resistance and edge retention at elevated cutting speeds. An AlTiN coating further extends tool life by providing thermal and oxidation resistance under high-heat cutting conditions. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces across a range of workpiece materials.

This end mill is suited for use in CNC machining centers and manual mills working with ferrous and non-ferrous metals, hardened steels, stainless steel, and similar materials where a high-performance solid carbide tool is required. Its 0.125 inch shank diameter fits standard collets and tool holders in that size range, making it a practical choice for small-diameter work in production and job shop environments. A licensed machinist or CNC operator would typically handle installation and setup.

Key Features

• AlTiN coating for thermal resistance and extended tool life in high-heat applications
• Micrograin solid carbide construction for superior hardness and edge retention
• 30-degree helix angle with upcut flute geometry for efficient chip evacuation
• Center-cutting capability allows plunge entry into workpiece material
• Right-hand cut and right-hand flute direction for standard spindle rotation
• Single end design with 2 flutes optimized for small-diameter precision work

Compatibility

Designed as a direct-fit replacement for standard 0.125 inch shank square end mills in CNC machining centers and manual milling machines equipped with compatible collets or tool holders.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Always power down and lock out the machine spindle before inserting or removing tooling. Ensure the shank is fully seated and properly torqued in the collet or tool holder per the machine manufacturer guidelines. Verify runout with a dial indicator before commencing cutting operations to protect both the tool and the workpiece.
