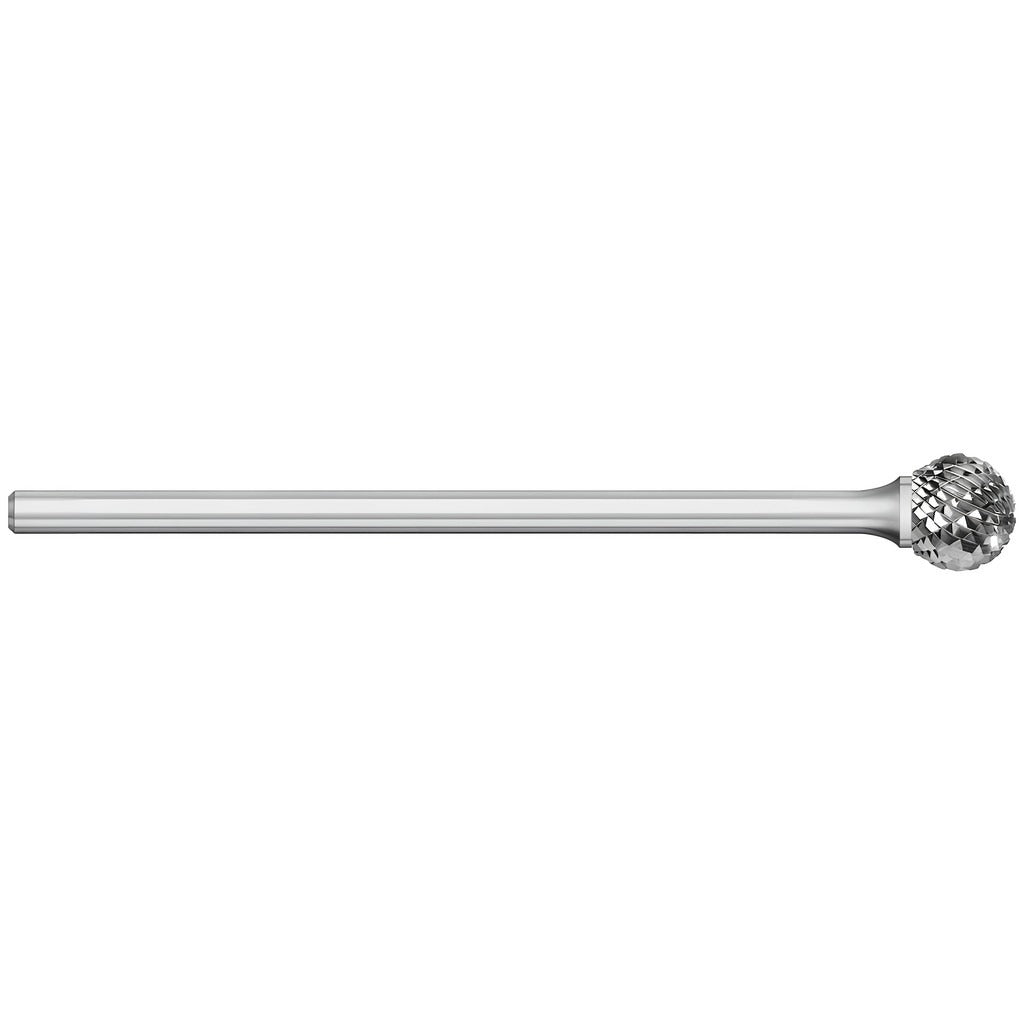

Titan Usa TB19579 Carbide Ball Bur Double Cut 1/2 in

Product Description

The TITAN USA TB19579 is a double-cut carbide abrasive bur with a ball head profile, designed for material removal, deburring, and shaping on ferrous and non-ferrous metals. The carbide head delivers consistent cutting performance across a range of metal types. Key dimensional specs include a 1/2-inch cutting diameter, a 1/2-inch length of cut, a 1/4-inch shank diameter, and a 6-1/2-inch overall length. The extended OAL makes this bur well suited for reaching into deep cavities, bores, or hard-to-access areas that shorter burs cannot reach. This tool is used by machinists, fabricators, tool-and-die workers, and maintenance technicians.

The TB19579 is rated for use on ferrous metals such as steel and cast iron, as well as non-ferrous metals including aluminum, copper, and brass. The ball head shape is commonly applied to contour grinding, blending weld beads, enlarging holes, and producing concave profiles. The double-cut tooth pattern removes material efficiently while producing a smoother finish than single-cut burs, reducing secondary finishing steps. It is suited for use in die grinders and rotary tools with a 1/4-inch collet.

Key Features

• Ball head profile for contour grinding, blending, and concave shaping
• Double-cut tooth pattern for efficient material removal and smoother surface finish
• Carbide head construction for durability on ferrous and non-ferrous metals
• Extended 6-1/2-inch overall length for deep-reach applications
• 1/4-inch shank diameter fits standard die grinder and rotary tool collets
• Uncoated head for consistent carbide cutting performance

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/4-inch shank. Suitable for ferrous and non-ferrous metal applications per industry specification SD-5L6.

Installation Notes

Install into a die grinder or rotary tool with a matching 1/4-inch collet and tighten securely before operation. Verify that the tool RPM rating meets or exceeds the bur maximum RPM before use. Always wear appropriate eye and face protection when operating rotary burs. Inspect the bur for chips or cracks before each use and replace if damaged.
