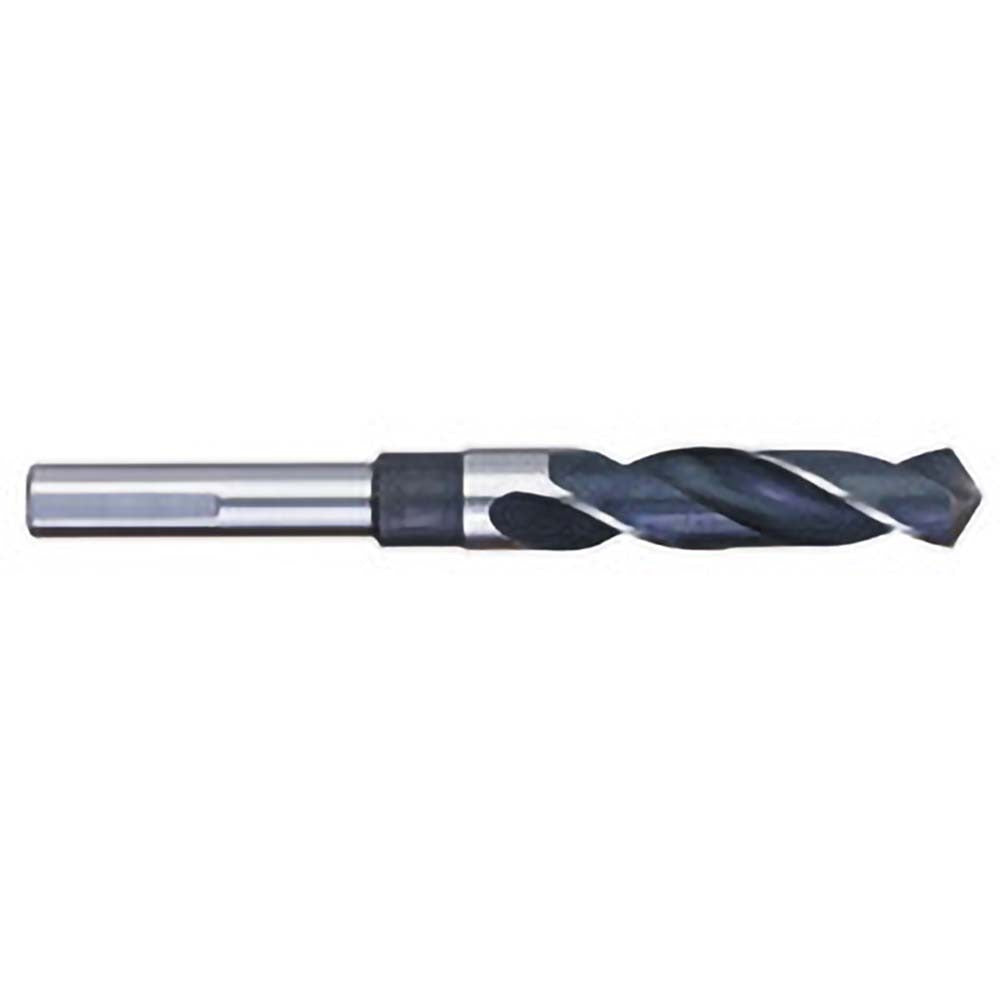

Titan Usa SD92534 Reduced Shank Drill Bit 17/32 in Hss

Product Description

The TITAN USA SD92534 is a reduced shank twist drill bit designed for drilling through metal, wood, and composite materials in trade and shop environments. Built from high speed steel (HSS), it delivers consistent performance across a range of drilling applications. The bit features a 17/32-inch cutting diameter with a 1/2-inch reduced shank, allowing it to fit standard 1/2-inch chucks even though the cutting diameter exceeds that size. The 118-degree point angle is the industry-standard geometry for general-purpose drilling. Overall length is 6 inches with a 3-inch flute length. Machinists, pipefitters, electricians, and HVAC techs commonly reach for this size when boring conduit knockouts, pipe clearance holes, or structural members.

The SD92534 is suited for use in drill presses, magnetic drills, and hand-held power drills equipped with a 1/2-inch chuck. The reduced shank with three flats prevents slippage in the chuck under load. The bright, uncoated finish makes it well-suited for use with cutting fluid on ferrous metals. It is a solid choice for trade professionals who need a reliable, standard-geometry bit in a size that bridges the gap between 1/2-inch and larger step-drill ranges.

Key Features

• 17/32-inch cutting diameter (0.5313 decimal inch) with a 1/2-inch reduced shank for standard chuck compatibility
• High speed steel construction for durability across metal, wood, and composite materials
• 118-degree point angle for general-purpose drilling performance
• Reduced shank with three flats prevents chuck slippage under torque load
• 3-inch flute length and 6-inch overall length provide good chip clearance in deeper holes
• Bright, uncoated finish compatible with cutting fluids on ferrous and non-ferrous metals

Compatibility

Designed as a general-purpose replacement drill bit compatible with any 1/2-inch keyed or keyless drill chuck. Series 620 designation per TITAN USA product line.

Installation Notes

Install the bit fully into the chuck and tighten all three flats to prevent spinning under load. Always secure the workpiece before drilling. When drilling ferrous metals, apply cutting fluid to extend bit life and reduce heat buildup. Inspect the cutting edge for wear or chipping before each use and replace if the point is damaged.
