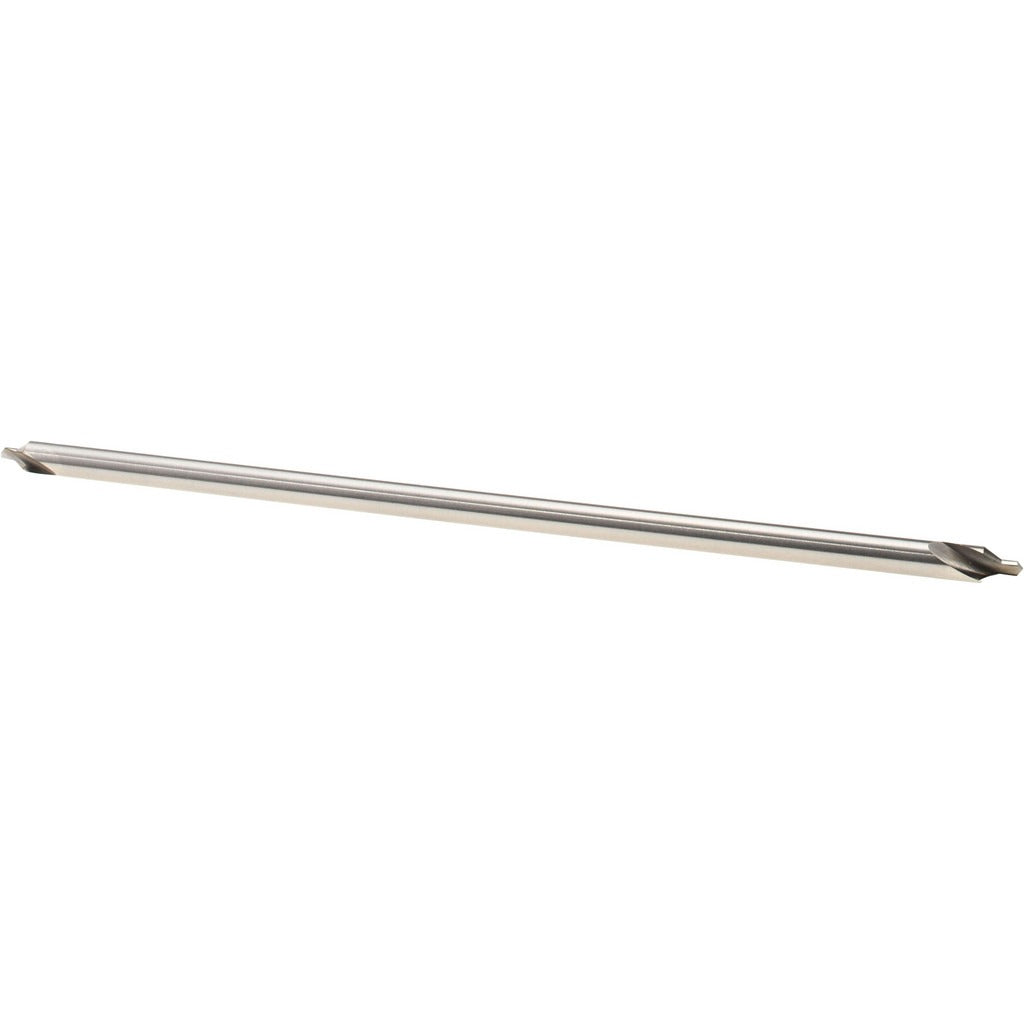

Titan Usa CS50026 Combo Drill Countersink Size 2 Hss

Product Description

The TITAN USA CS50026 is a combination drill and countersink designed for drilling and countersinking in a single operation. Built from high-speed steel with a bright uncoated finish, this tool handles both the pilot hole and the countersink angle without a tool change. The body diameter measures 3/16 inches, the drill point diameter is 5/64 inches (0.0781 inches), and the overall length is 6 inches. The 118-degree drill point angle and 60-degree included countersink angle are standard geometry for general metalworking and woodworking applications. Right-hand cutting direction. Weighs 0.06 pounds. Suited for machinists, fabricators, and maintenance technicians working with drill presses, lathes, or hand-held power tools.

This combo drill countersink is used in production and maintenance environments where flat-head fastener seating or deburring is required in a single pass. The double-end style maximizes tool life by providing two usable cutting ends. Typical applications include metal fabrication, light manufacturing, and general maintenance work on steel, aluminum, and similar materials. Sold individually.

Key Features

• Combination drill and countersink in one tool — eliminates tool changes between operations
• High-speed steel construction for durability in metalworking and general fabrication
• Double-end design extends tool life with two usable cutting ends
• 118-degree drill point angle with 60-degree included countersink angle for standard fastener seating
• Plain cutting edge style compatible with most drill press and lathe setups
• Right-hand cut with bright uncoated finish — no additional coating to affect tolerances

Compatibility

Designed as a standard size 2 combo drill countersink suitable for use in drill presses, lathes, and compatible hand-held power tool chucks that accept 3/16 inch body diameter tooling.

Installation Notes

This tool is installed and operated by machinists or maintenance technicians familiar with drill press or lathe setups. Secure the tool firmly in the chuck before operation and verify spindle speed is appropriate for the material being worked. Inspect cutting edges before each use and discontinue use if chipping or excessive wear is observed. Eye protection and appropriate machine guarding are required during operation.
