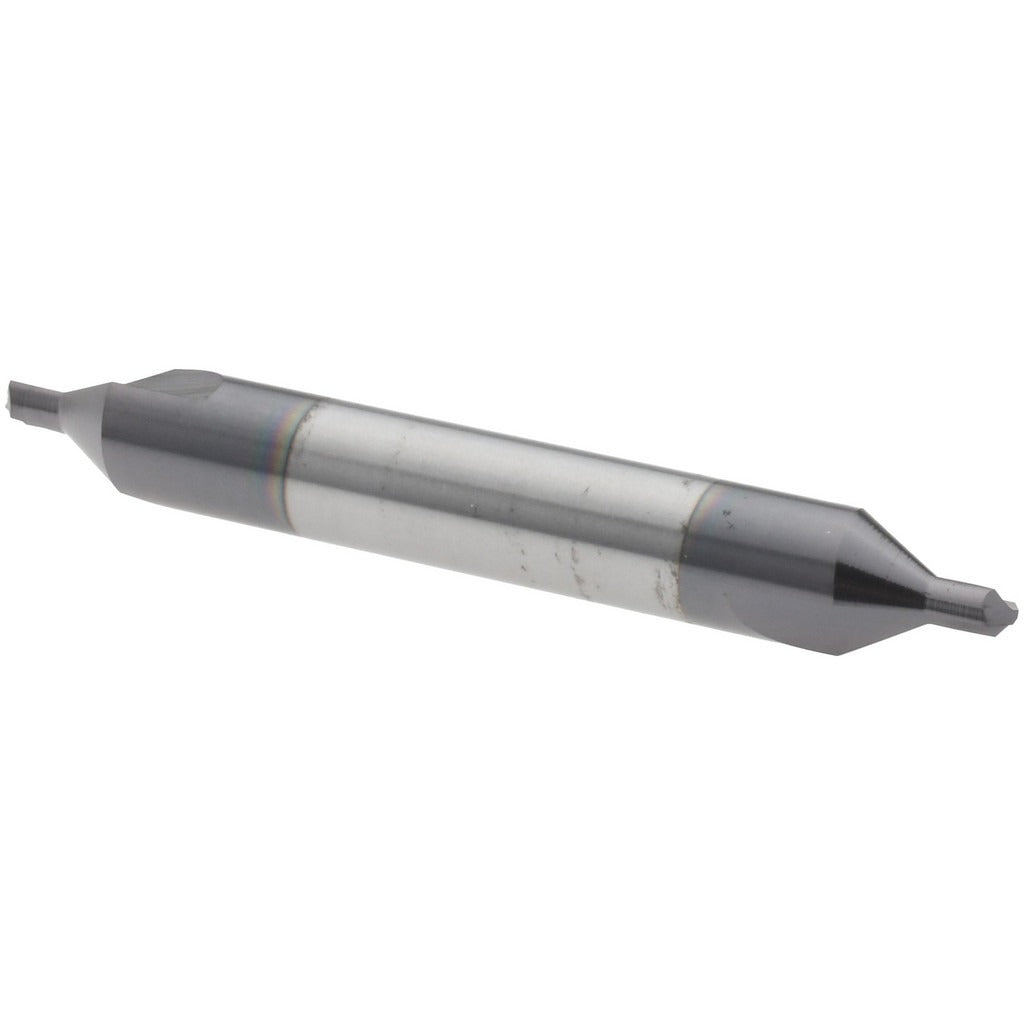

Titan Usa CS36003 Combo Drill Countersink Solid Carbide

Product Description

The TITAN USA CS36003 is a solid carbide combo drill countersink designed to drill a pilot hole and cut a countersink in a single pass. The body diameter measures 0.25 inches with a drill point diameter of 0.1094 inches. The tool cuts at a 118-degree drill point angle and produces a 60-degree included countersink angle. Overall length is 2 inches. The AlTiN coating improves heat resistance and extends tool life in demanding materials. This tool is used by machinists and trade professionals in production, fabrication, and maintenance applications where efficiency and hole quality matter.

This combo drill countersink suits applications where a pilot hole and countersink must be produced in one step, reducing setup time and tool changes. The right-hand cutting direction and plain cutting edge style make it straightforward to run on standard drill presses, CNC machines, and milling centers. The double end type provides two usable cutting ends, which extends the service life of each tool. Typical use cases include metalworking, sheet metal fabrication, and precision machining of ferrous and non-ferrous materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating for improved heat resistance and extended tool life
• 118-degree drill point angle with 0.1094-inch drill point diameter
• 60-degree included countersink angle for standard fastener seating
• Double end design provides two cutting ends per tool
• Right-hand cut, plain cutting edge style for compatibility with standard toolholders

Compatibility

Designed as a standard combo drill countersink for use in drill presses, CNC machining centers, and milling machines that accept a 0.25-inch shank diameter tooling.

Installation Notes

Installation and use should be performed by a qualified machinist familiar with cutting tool setup and machine operation. Secure the tool firmly in an appropriate collet or chuck before operation and verify runout before cutting. Power down and de-energize the machine before changing or inspecting tooling. Follow all applicable shop safety procedures and machine manufacturer guidelines when operating at speed.
