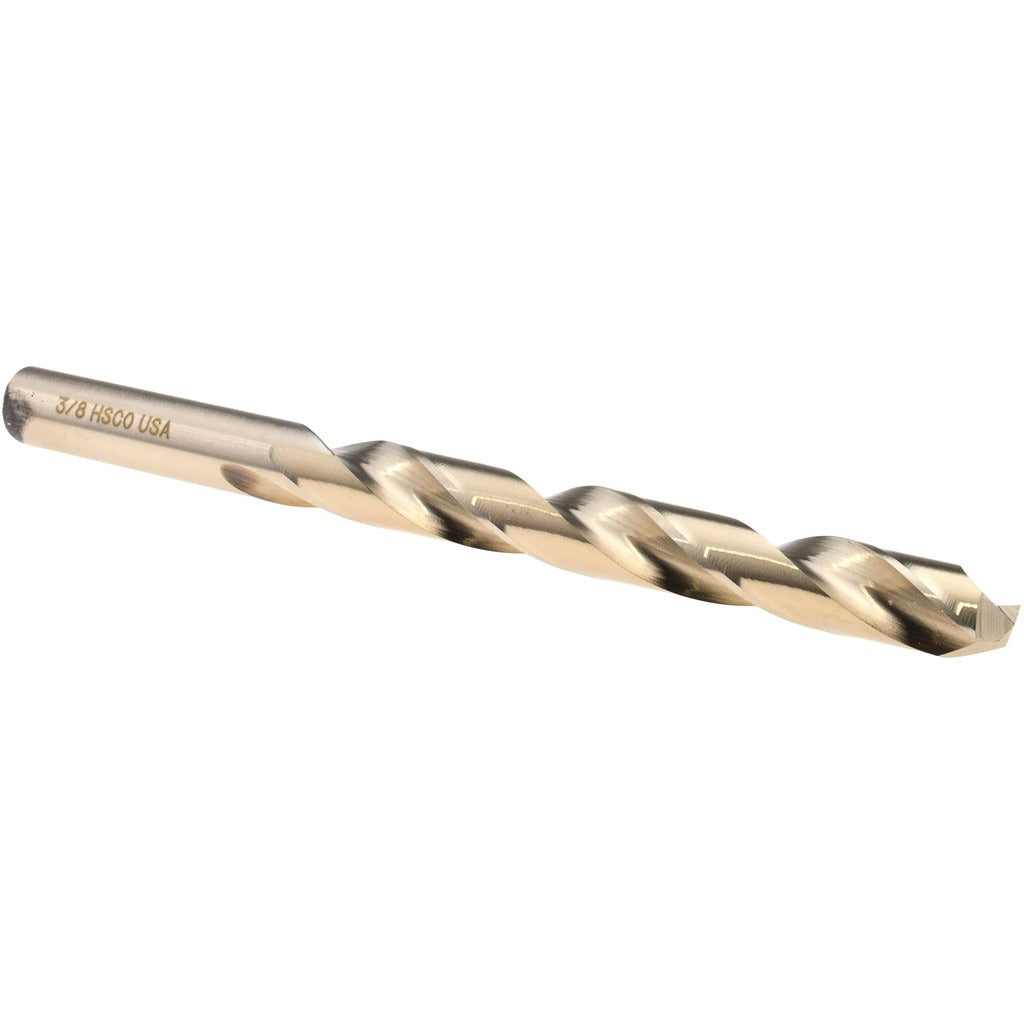

Titan Usa CD50024 Cobalt Jobber Drill Bit 3/8 Inch

Product Description

The TITAN USA CD50024 is a cobalt jobber-length drill bit engineered for cutting through demanding materials where standard high-speed steel bits fall short. Built to Series CD50 specifications, it features a 3/8 inch diameter with a straight-cylindrical shank of equal 3/8 inch diameter and an overall length of 5 inches. The 135-degree split point self-centers on contact, reducing walking and the need for a center punch. An oxide and TiN coating helps manage heat and extends cutting life. This bit is suited for trade professionals, maintenance technicians, and fabricators who drill into hard metals regularly.

The CD50024 is rated for use in stainless steel, superalloys, and titanium — materials that quickly degrade standard bits. With a 2-flute right-hand spiral design, a flute length of 3.625 inches, and a 10xD flute-to-diameter ratio, it provides adequate chip evacuation in deeper holes. Typical applications include field fabrication, equipment repair, and any production or service environment where hard-metal drilling is routine. The straight-cylindrical shank seats directly in standard 3-jaw chucks without adapters.

Key Features

• Cobalt construction for heat resistance in stainless steel, superalloys, and titanium
• 135-degree split point reduces thrust force and self-centers without a center punch
• Oxide and TiN coating for added surface hardness and extended tool life
• 2-flute right-hand spiral geometry promotes clean chip evacuation
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters
• Maximum drilling depth of 3.625 inches matches flute length for full usable reach

Compatibility

Designed as a jobber-length replacement drill bit for use in standard 3-jaw chucks and compatible drilling equipment accepting a 3/8 inch straight-cylindrical shank. Part of the TITAN USA CD50 Series.

Installation Notes

Install and remove only with the drill, press, or driver fully powered down and the chuck key removed from the chuck. Seat the shank fully and tighten the chuck securely before operation. When drilling stainless steel or superalloys, use an appropriate cutting fluid to manage heat buildup and preserve cutting edge life. Dispose of worn bits according to applicable shop safety procedures.
