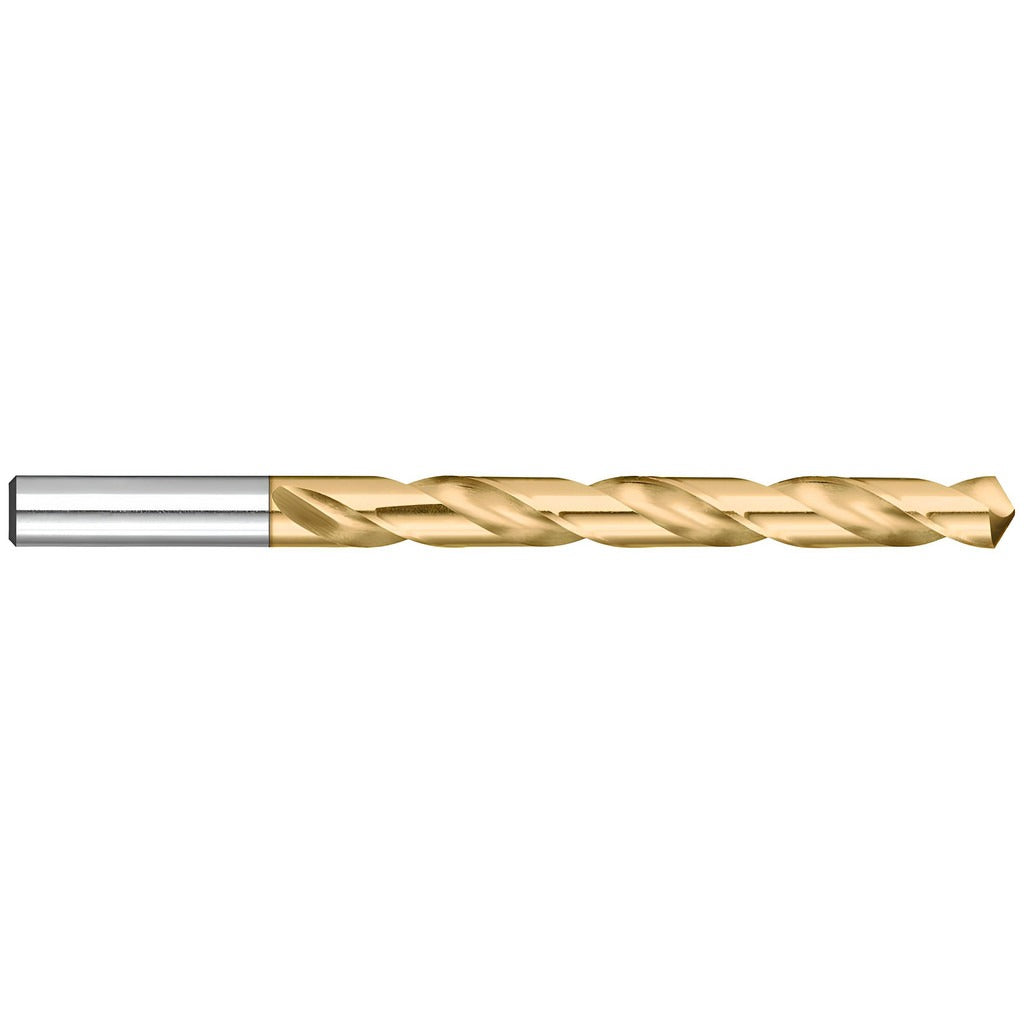

Titan Usa CD47504 Jobber Drill Bit 5/64 in Hss Tin

Product Description

The TITAN USA CD47504 is a jobber-length drill bit designed for precision drilling in non-ferrous metals and similar materials. It carries a 5/64 inch (0.0625 inch decimal) diameter with a standard 118-degree point angle and a titanium nitride (TiN) coating that extends tool life by increasing surface hardness and reducing friction during cutting. The bit features a regular spiral, two-flute geometry with right-hand cutting action. Overall length is 1.875 inches with a straight cylindrical shank. This bit is suited for use with standard drill chucks in benchtop or handheld drilling applications across light industrial and trade shop environments.

The CD47504 is sized for small-diameter through-hole and starter-hole work in non-ferrous metals such as aluminum, brass, and copper. With a 7/8 inch flute length and a maximum drilling depth of 0.875 inches, it is well suited for sheet stock, light plate, and component fabrication tasks. The 14xD flute-to-diameter ratio supports efficient chip evacuation in shallow drilling passes. Machinists, tool-and-die technicians, electricians, and HVAC fabricators working with thin non-ferrous sheet commonly reach for this size in Series CD47 tooling.

Key Features

• TiN coating increases surface hardness and reduces heat buildup during drilling
• 118-degree standard point angle for general-purpose entry into non-ferrous materials
• Two-flute regular spiral geometry promotes clean chip removal
• Straight cylindrical shank fits standard 3-jaw drill chucks without adapters
• Right-hand cutting direction compatible with conventional drill press and hand-drill setups
• No coolant-through requirement simplifies use in field and shop settings

Compatibility

Designed for use in standard straight-shank drill chucks. Primary workpiece material is non-ferrous metal. Part of the TITAN USA Series CD47 jobber drill line sized in the 0.0500 to 0.1000 inch diameter range.

Installation Notes

Secure the shank fully in the drill chuck before operation and verify chuck key is removed prior to powering the drill. For small-diameter bits at this size, use the lowest practical feed pressure to avoid bit deflection or breakage. Do not use this bit on hardened steel or masonry surfaces. Cutting fluid or light oil is optional for non-ferrous applications but is not required.
