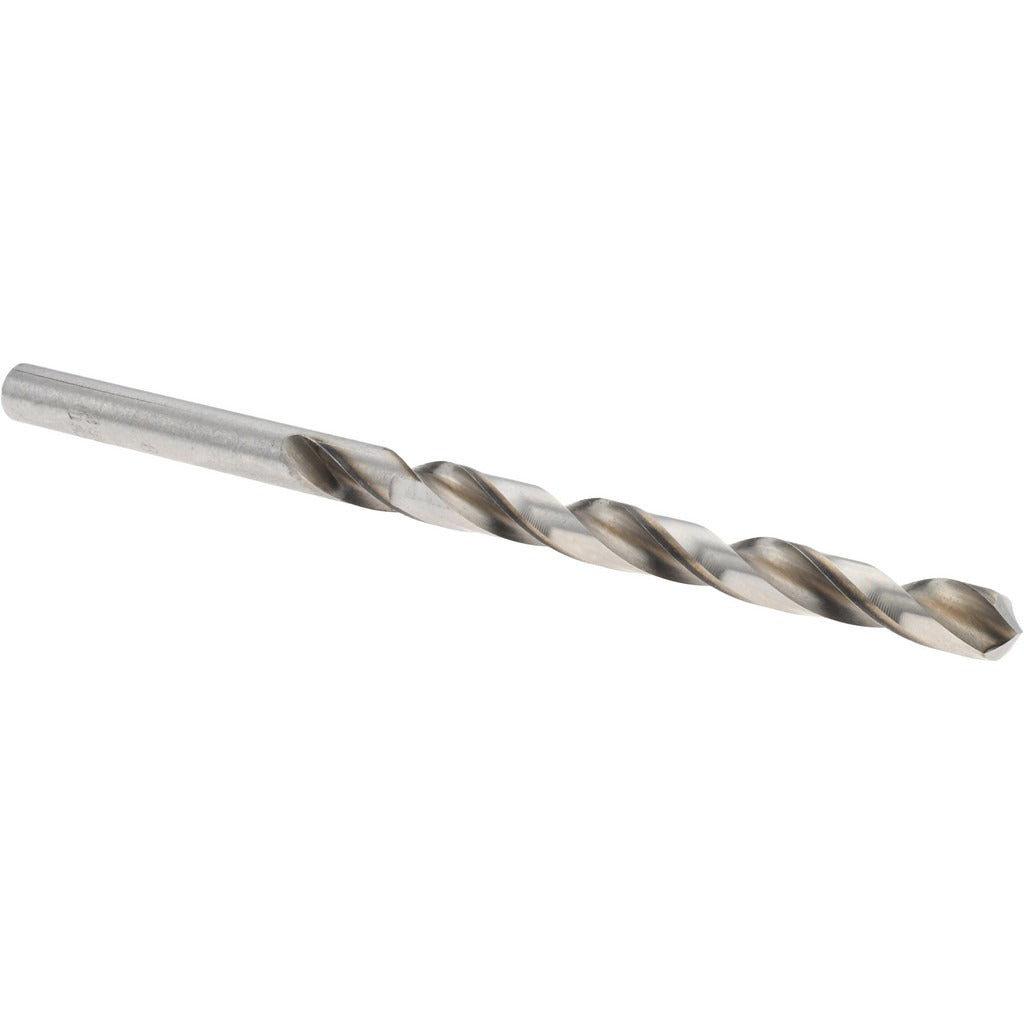

Titan Usa CD40808 Jobber Drill Bit 0.1990 in Hss

Product Description

The TITAN USA CD40808 is a Number 8 wire-size jobber-length drill bit designed for precision drilling in non-ferrous metals and similar materials. It measures 0.1990 inches in diameter and 3.625 inches overall, with a 118-degree standard point angle that provides reliable self-centering on entry. The bit is manufactured from high speed steel with a bright, uncoated finish, offering adequate hardness for general-purpose drilling tasks. The two-flute spiral design with regular spiral type promotes efficient chip evacuation during drilling. This bit is a standard tool in the kit of machinists, HVAC technicians, electricians, plumbers, and general tradespeople who need consistent, repeatable hole sizes in non-ferrous workpieces.

The CD40808 belongs to the TITAN USA Series CD40 jobber drill line. It is suited for drilling non-ferrous metals such as aluminum, brass, and copper, as well as plastics and light-gauge materials. Its straight cylindrical shank fits standard drill chucks across benchtop drill presses and handheld power drills. With a flute length of 2.4375 inches and a maximum drilling depth of 2.4375 inches, it handles typical through-hole and shallow blind-hole applications in trade and light industrial environments. It is sold individually with a minimum order quantity of one.

Key Features

• Number 8 wire size, 0.1990 inches diameter with tight tolerance of -0.0007 to +0.0000 inches
• 118-degree standard point angle for reliable self-centering on flat and curved surfaces
• High speed steel construction for durability across general-purpose drilling tasks
• Bright uncoated finish suitable for non-ferrous metals, plastics, and light materials
• Two-flute regular spiral design for effective chip clearing during the cut
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a standard jobber-length drill bit compatible with any drill press or handheld power drill equipped with a chuck that accepts a 0.1990-inch straight cylindrical shank.

Installation Notes

This bit is installed and operated by machinists, tradespeople, and service technicians using standard drill chucks on corded or cordless power drills and drill presses. Secure the shank fully in the chuck and verify runout before drilling. Use appropriate cutting fluid or lubrication when drilling metals to extend bit life and improve hole quality. Do not exceed the maximum drilling depth of 2.4375 inches, and back the bit out periodically to clear chips from the flutes.
