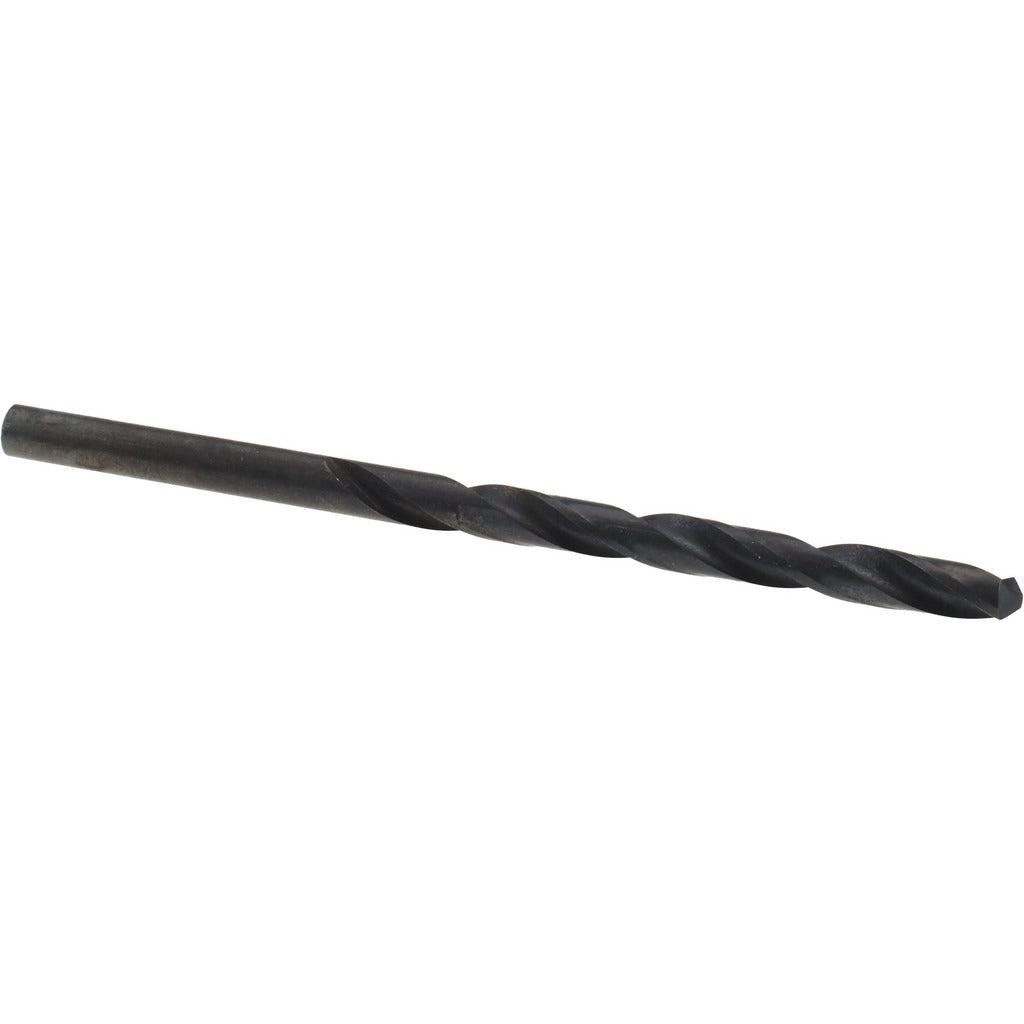

Titan Usa CD40213 Jobber Drill Bit Wire 13 Hss Black Oxide

Product Description

The TITAN USA CD40213 is a wire gauge size 13 jobber-length drill bit designed for general-purpose drilling in a wide range of metallic and non-ferrous materials. Manufactured from high speed steel with a black oxide coating, it delivers adequate wear resistance and mild lubricity for production and maintenance drilling tasks. The bit features a 118-degree standard point angle, a right-hand spiral flute, and a straight cylindrical shank. Overall length is 3.5 inches with a flute length of 2.3125 inches and a maximum drilling depth of 2.3125 inches. At 0.185 inch decimal diameter, it falls within the 0.1500 to 0.2000 inch size range of the CD40 series. Licensed contractors, maintenance mechanics, and fabrication shops typically keep this size on hand for tapping pilots, clearance holes, and general hole-making work.

This drill bit suits applications in steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It is suited for use in hand drills, drill presses, and CNC machining centers where a straight cylindrical shank is acceptable. The regular spiral type and two-flute geometry make it effective for chip evacuation in through-hole and blind-hole drilling at standard cutting speeds for HSS tooling. No coolant-through capability is present, so flood or mist coolant applied externally is recommended when drilling harder alloys or high-temperature materials.

Key Features

• Wire gauge size 13 (0.1850 inch decimal diameter) with tight diameter tolerance of -0.0007 to +0.0000 inch
• 118-degree standard point angle for easy entry in steel and general metalworking applications
• Black oxide coating reduces friction and provides mild corrosion resistance during storage and use
• Right-hand cut, regular spiral, two-flute geometry promotes consistent chip evacuation
• Straight cylindrical shank fits standard drill chucks without adapters
• 3.5 inch overall length with 2.3125 inch flute length supports drilling depths up to 2.3125 inches

Compatibility

Designed as an OEM-style replacement or direct-fit drill bit for applications requiring a wire gauge size 13 jobber-length HSS bit with a straight cylindrical shank and 118-degree point, compatible with standard three-jaw drill chucks and collet holders accepting 0.1850 inch shank diameters.

Installation Notes

Installation is performed by machinists, maintenance technicians, or trade professionals using a hand drill, drill press, or machining center. Secure the shank fully in the chuck and verify runout before commencing drilling. Ensure workpieces are clamped securely to prevent walking at breakthrough. Apply cutting fluid or external coolant when drilling stainless steel, cast iron, superalloys, or titanium to extend tool life and maintain hole quality.
